CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum

CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum

Specification:

OUTPUT DC Port:  4 Channel

OUTPUT VOLTAGE:  DC 12V

RATED CURRENT:  DC 5A

RATED POWER:  60W

SETUP,RISE TIME: 500ms,20ms/230VAC

INPUT VOLTAGE RANGE: AC 100-120V, AC 200-240V, 50Hz / 60Hz

FREQUENCY RANGE:  47-63HZ

LEAKAGE CURRENT:  1mA/240VAC

ENVIRONMENT:  WORKING TEMP  -10~+60°C

WORKING HUMIDITY: 20-90%RH non-condensing

STORAGE TEMP,HUMIDITY: -20~+85°C,10-95%RH

Shell Material: Metal case / Aluminum case

DIMENSION:  165X165X47 mm



Package Content:

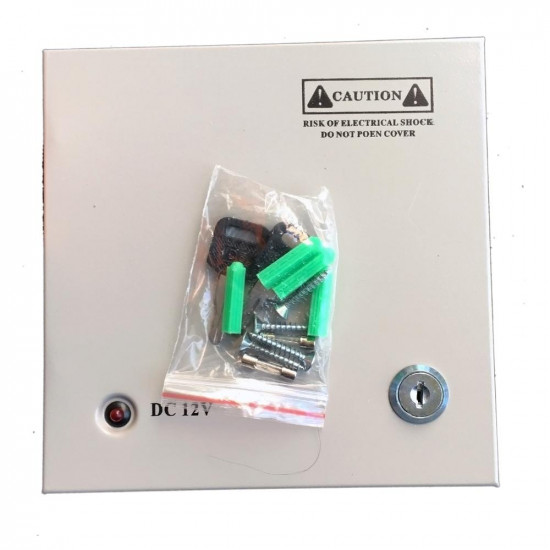

1*4CH 12V/5A Power Box

Ares Vision supplies a wide selection of 12V DC power supplies and DC security camera power supplies to fulfill your security system's needs.

Our DC power supplies are built with sturdy, quality components to meet the highest standards and reliably power your lighting & security equipment.

All of our 12V DC power supplies ship same day. - Input Voltage : AC100-240, 50/60 Hz / Output Voltage : 12V DC



Write a review

Note: HTML is not translated!
Bad Good
CCTV Power Supply 4CH Port Box, Distributed Power Supply for CCTV DVR Security System and Cameras, Output 12V 5A 60W Maximum
  • Stock: In Stock
  • Model: EP-12V-5A-4CH
190 samples sold
2,700.00DA
