DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply

DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply

Product introduction

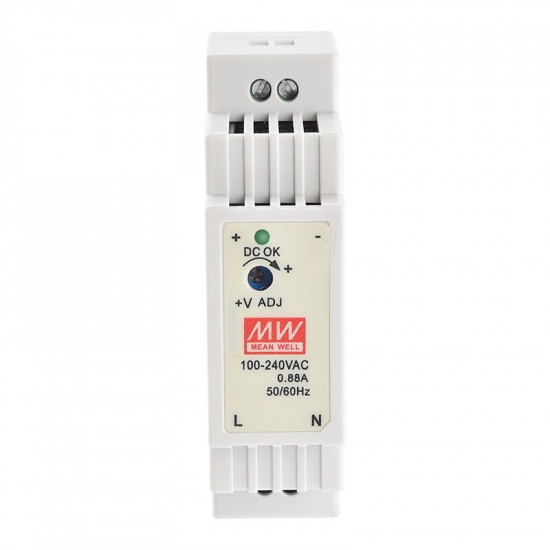

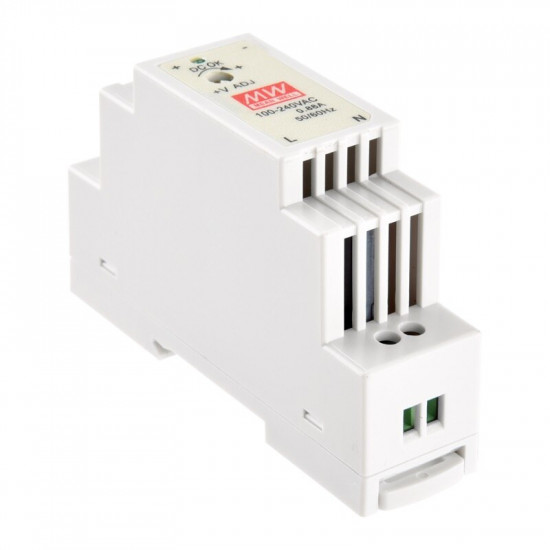

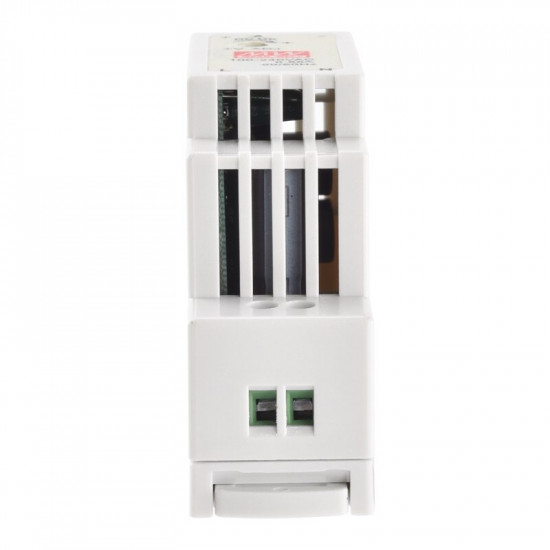

DR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 25mmin width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 100VAC to 240VAC and conforms to EN61000-3-2.

DR-15 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30°C and 70°C under free air convection. It is equipped with constant current mode for overload protection, fitting various inductive or capacitive applications.

Product features

1.Protections: Short circuit / Overload / Over voltage.

2.Cooling by free air convection.

3.With working efficiency up to 87%.

4.No load power consumption<0.3W.

5.DC output voltage adjustable.

6.Isolation class II.


·       Product specifications



Product model

DR-15-12


Output voltage

12VDC


Output current

1.25A

Rated power

15W

Input voltage

AC100-240V

Function

Overload/over voltage/short circuit protection

Installation

35mm din rail installation

Working temperature

-30°C ~ +70°C

·

Write a review

Note: HTML is not translated!
Bad Good
DR-15 15W 100-240V AC To DC 12V 1.25A 0.63A Single Output Industrial DIN Rail Switching Power Supply
  • Stock: In Stock
  • Model: DR-15-12
  • Dimensions: 93.00mm x 56.00mm x 25.00mm
190 samples sold
3,000.00DA
