Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V

Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
New Hot
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
Functions:
1.Over-voltage protection
2.Under-voltage protection
3.Over-current protection
4.Automatic recovery

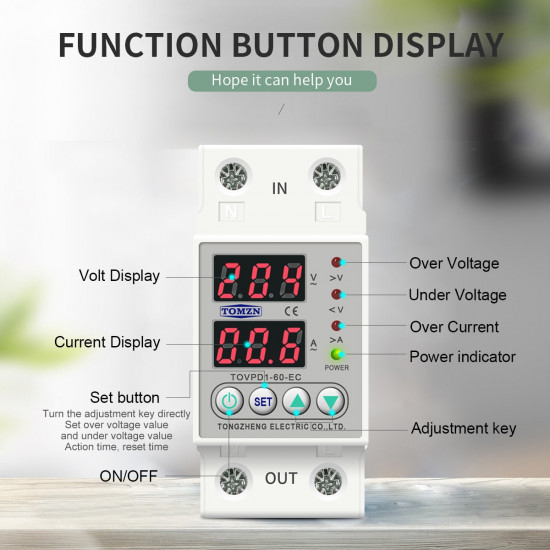

5.Voltage display(voltage measurement)
6.Current display (current measurement)
7. Voltage calibration: Voltage +-10% adjustable. A13
8. Restore factory settings: press the down button for more than 12s
9.Fault inquiry: Press the UP button from more than 12S

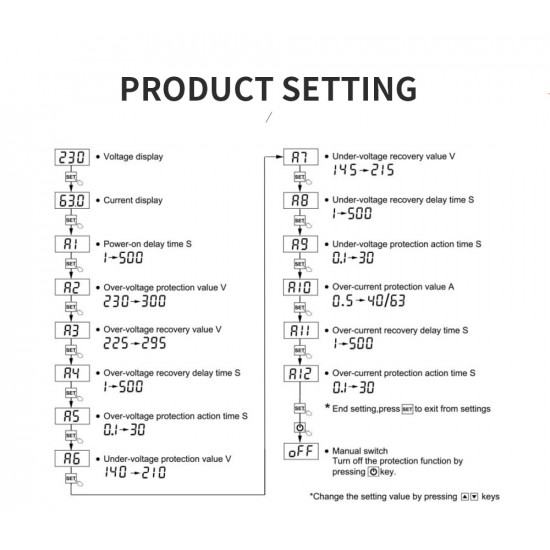

Product Parameters:
1.Model number:TOVPD1-60-EC
2.Power supply:230VAC 50/60Hz
3.Max.Loading power:1~63A  Adjustable(default:63A)
4.Over-voltage protection value range:230V~300~OFF(default:270V)
   Over-voltage recovery voltage range:225V--295V(default:250V)
   Over-voltage protection action time:0.1s~30s(default value:0.5s)
   Over-voltage recovery delay time:1s~500s(default:30s)
5.Under-voltage protection value range:140V--210V --OFF(default:170V)
    Under-voltage recovery voltage range:145V--215V (default:190V)
    Under-voltage protection action time:0.1s~30s(default:0.5s)
    Under-voltage recovery delay time:1s~500s(default:30s)
6.Over-current adjustment range:1-40A (default:20A)1-63A (default:40A)
   Over-current action range:0.1~30 second (default:0.5s)
Over-currentrecovery delay time:1s~500s(default:30s)
7.Power-on delay time:1s~500s(default:10s)
9.Power consumption : <2W
10.Electric machinery life : 100,000 times

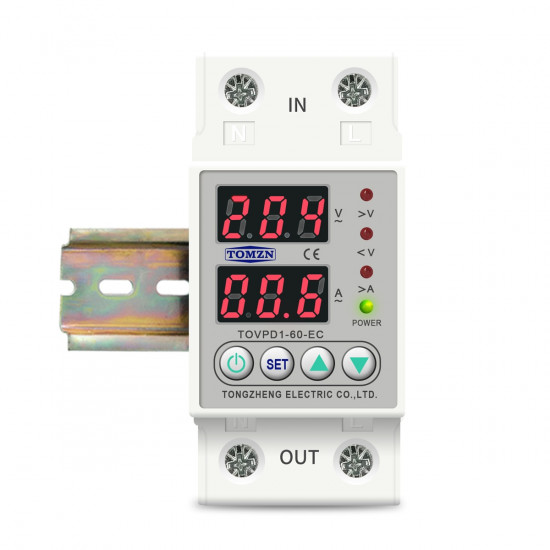

11.Installation:35mm DIN rail

Write a review

Note: HTML is not translated!
Bad Good
Din Rail Dual Display Adjustable Over Voltage Current and Under Voltage Protective Device Protector Relay 63A 230V
  • Stock: In Stock
  • Model: TOVPD1-60-EC
  • Dimensions: 85.00mm x 35.00mm x 65.00mm
