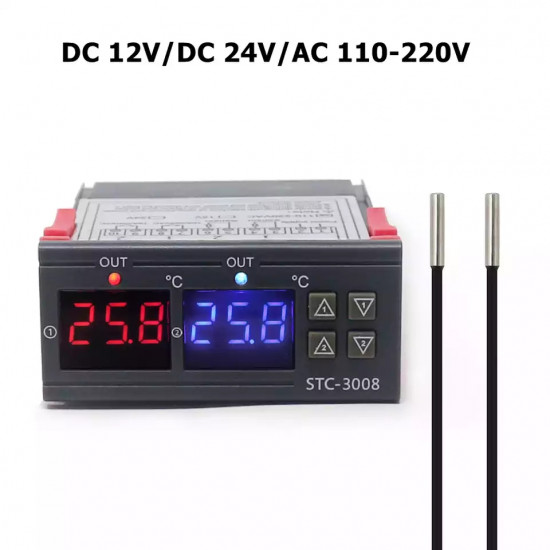

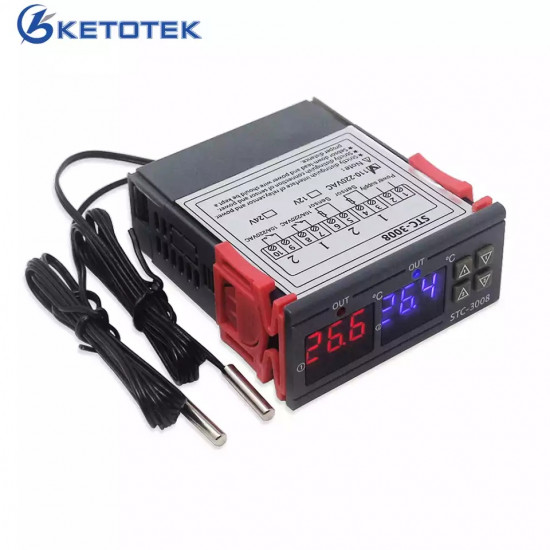

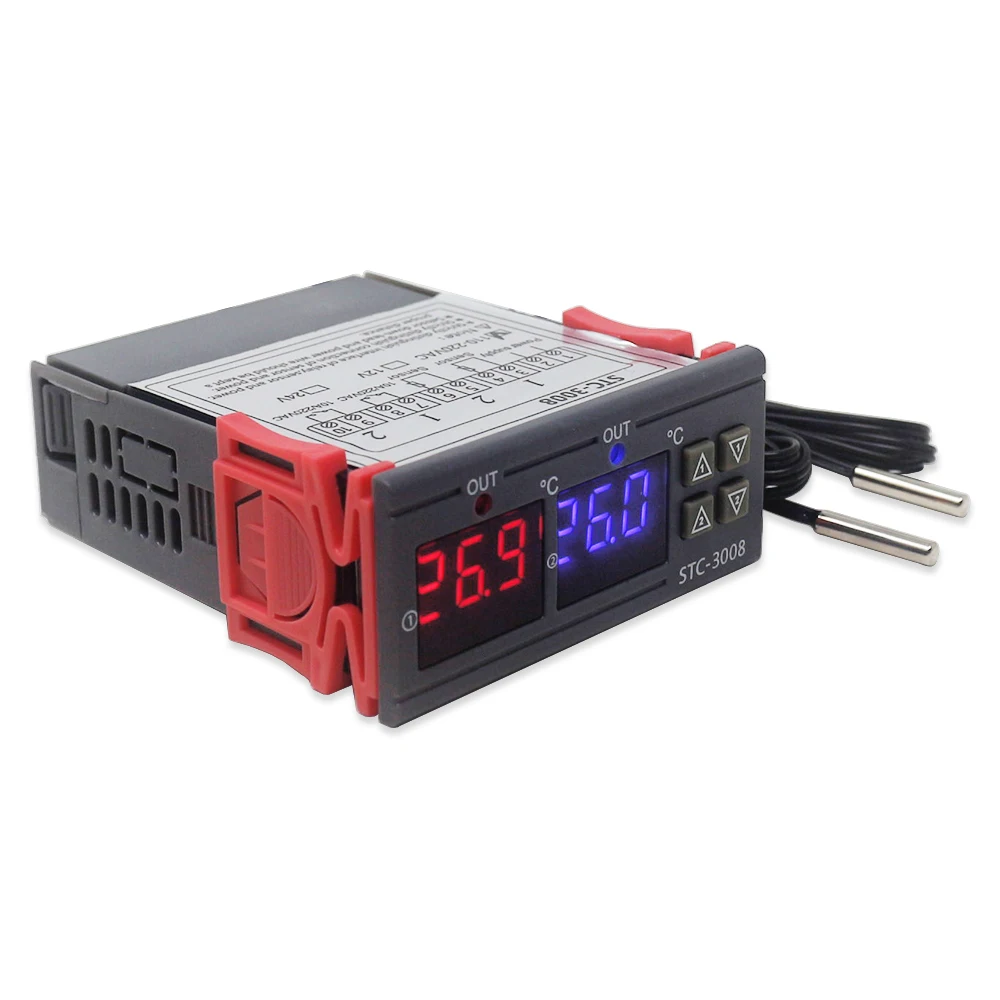

STC-3008 KT99 Dual Digital Temperature Controller Two Relay Output 12V 24V 220V Thermoregulator Thermostat With Heater Cooler

Model 1:



Overview:

  • Independent Dual-way temperature controller.
  • Heating or cooling control.Red and blue LED display.
  • All parameters setting can be saved after short circuit.
  • Directly power output.
  • Can be used for domestic freezer, water tanks, refrigerator, industrial chiller, steamer, industrial equipment and other temperature-controlled system.

Specifications:

  • Power Supply:12VDC、24VDC、110V-220VAC
  • Temperature control range: -50~120°C
  • Resolution Ratio: 0.1°C(-9.9-99.9); 1°C(other range)
  • Measurement accuracy: ±0.1°C
  • Control accuracy: 0.1°C
  • Refresh rate: 0.5S
  • Sensor1 2: NTC10K Waterproof sensor each
  • Output1 2: Max 10A directly output each
  • Environmental requirements: -10-60°C , humidity 20%-85%RH

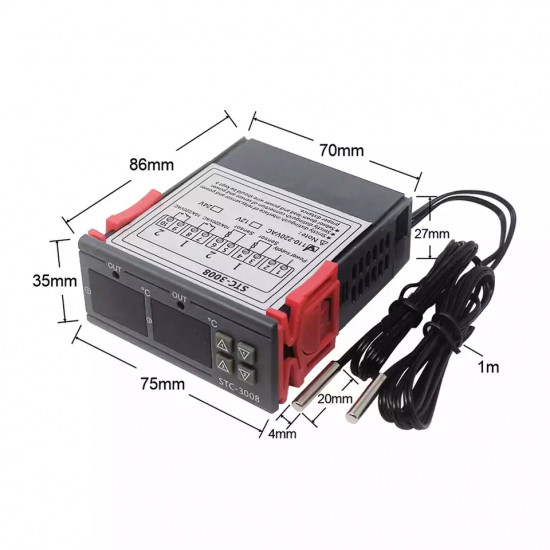

  • Size:100mm(L)*55mm(W)*32mm(Depth)
  • Cutting size: 75(L)mm*55(W)mm M3 screw hole
  • Power consumption: Static current: ≤35MA,attract current: ≤65MA



Operation Instruction :

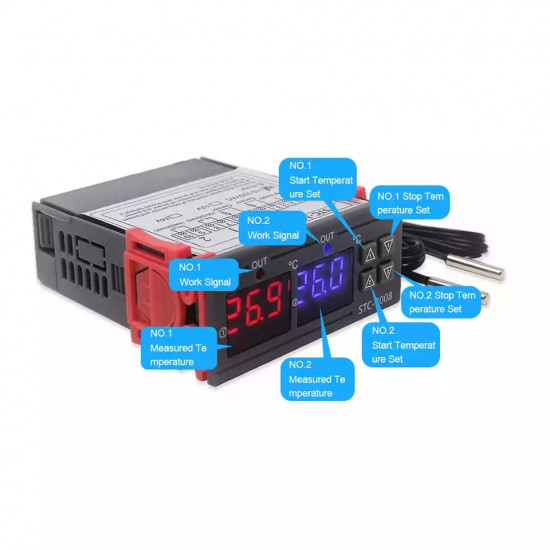

You can set different start temperature and stop temperature in controller 1 and controller 2.

Cooling mode:
When set start temperature ≥ stop temperature, the
controller will work in cooling mode.You can use cooler
as load. For example, set start temperature 35℃,stop
temperatre 32 ℃ .Cooler work when temperature ≥
35℃,Cooler stop when temperature≤32℃

Heating mode:
When set start temperature ≤ stop temperature, the
controller will work in heating mode.You can use heater
as load. For example, set start temperature 45℃,stop
temperatre 60 ℃ .Heater stop when temperature ≥
60℃,heater work when temperature≤45℃

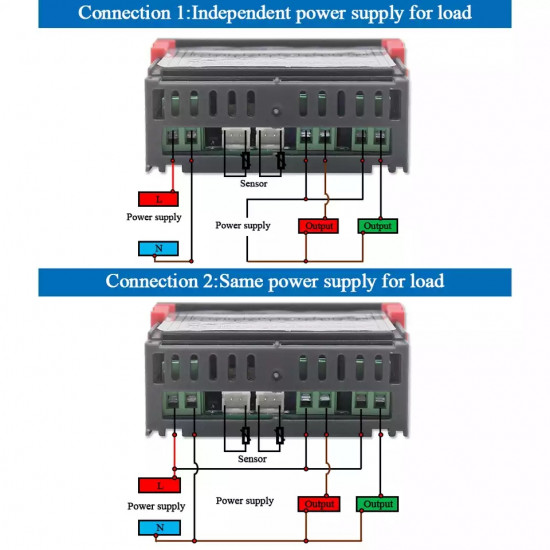

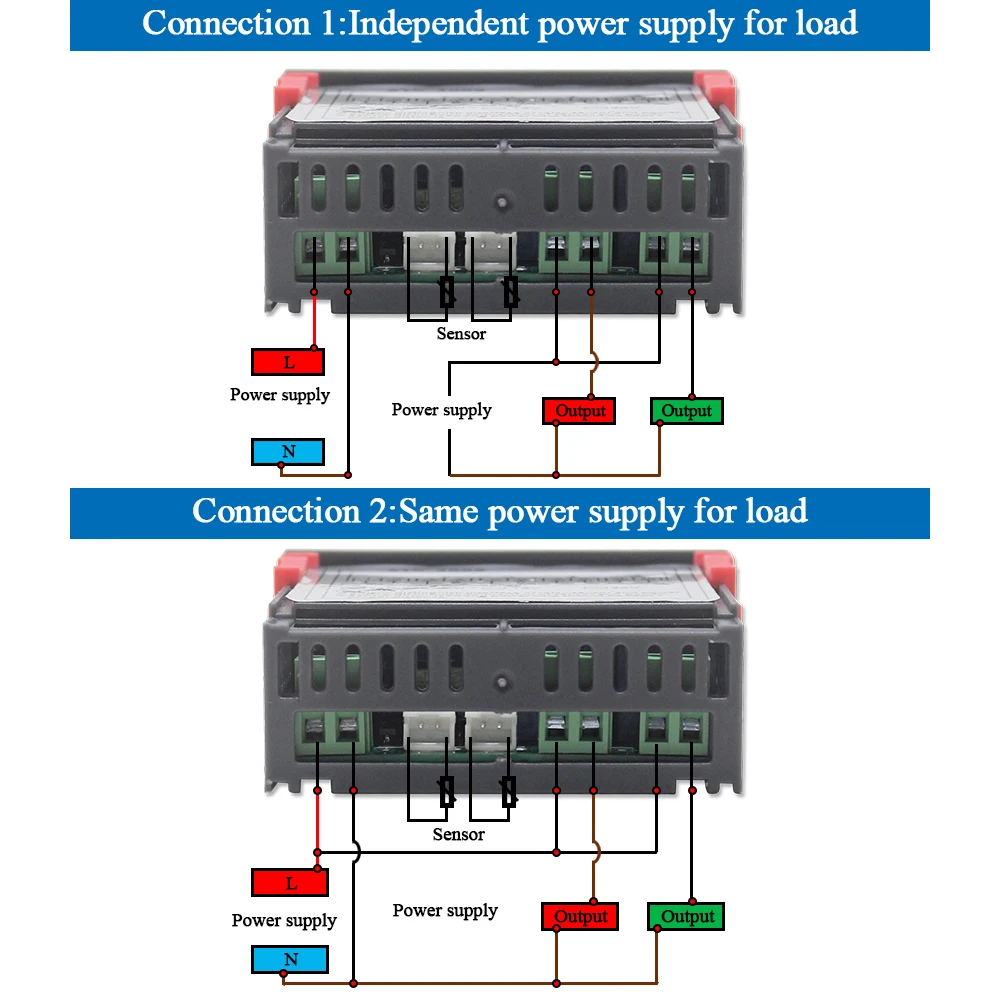

Wiring Diagram:

11IMG_98063

12IMG_98062



You can use controller 1 and 2 to control two independent

systems.Load1 and load2 can be two independent heater/cooler.



Package Content:



  • 1 x Dual temperature controller with two sensors ( No including retail box )
  •



5KT99F014210IMG_979313IMG_9814

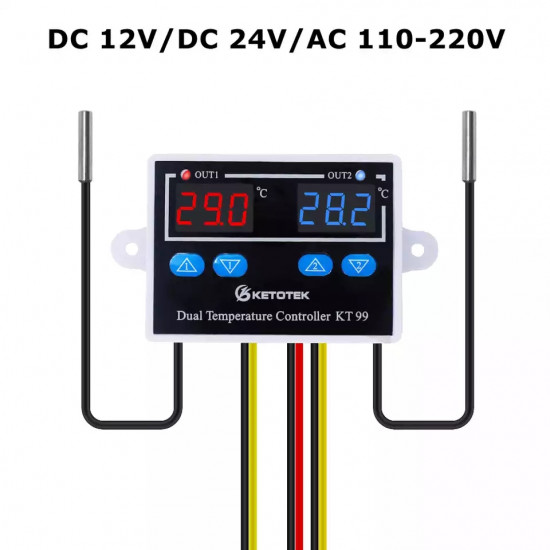

Model 2:

Prameters:



Name

Digital Dual Temperature Controller

Temperature meauring range

-55°C~120°C

Resolution

0.1

Controlling Accuracy

1°C

Relay contact current

10A/240V AC

Temperature Sensor

NTC10K

Length of cable

1m

Power supply

DC 12V/110~220V( choose the one you need )

Data Save

YES

Working temperature

0°C~50°C

Storage Temperature

-10°C~60°C




Features:









Default

P0

①: Delay start

0-60 minutes

0

P1

②: Delay start

0-60 minutes

0

P2

High temperature alarm

P3~120°C

120°C

P3

Low temperature alarm

P2~-55°C

-55°C

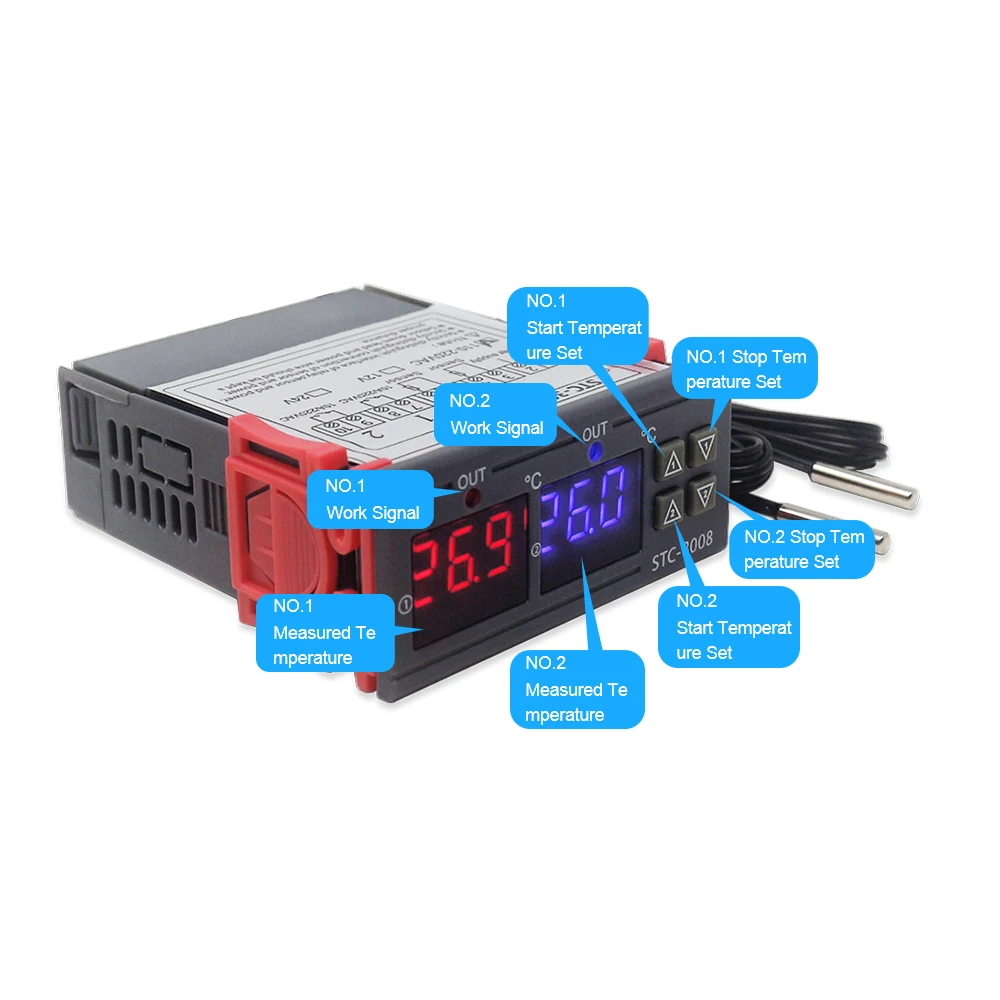

Long press UPbutton for 3 seconds, ① display flashes, press UP or DOWNbutton to set the start temperature(25°C default)
Long press DOWNbutton for 3 second, the display flashes, press UP or DOWNbutton to set the stop temperature (40°C default)

Long press UPbutton for 3 seconds, ② display flashes, press UP or DOWNbutton to set the start temperature(25°C default)
Long press DOWNbutton for 3 second, the display flashes, press UP or DOWNbutton to set the stop temperature (40°C default)

Press the "Down 1" and "Down 2" button at the same time,  the factory setting is restored

Heating Mode--Start temperature
Cooling Mode--Start temperature>Stop temperature



Note:

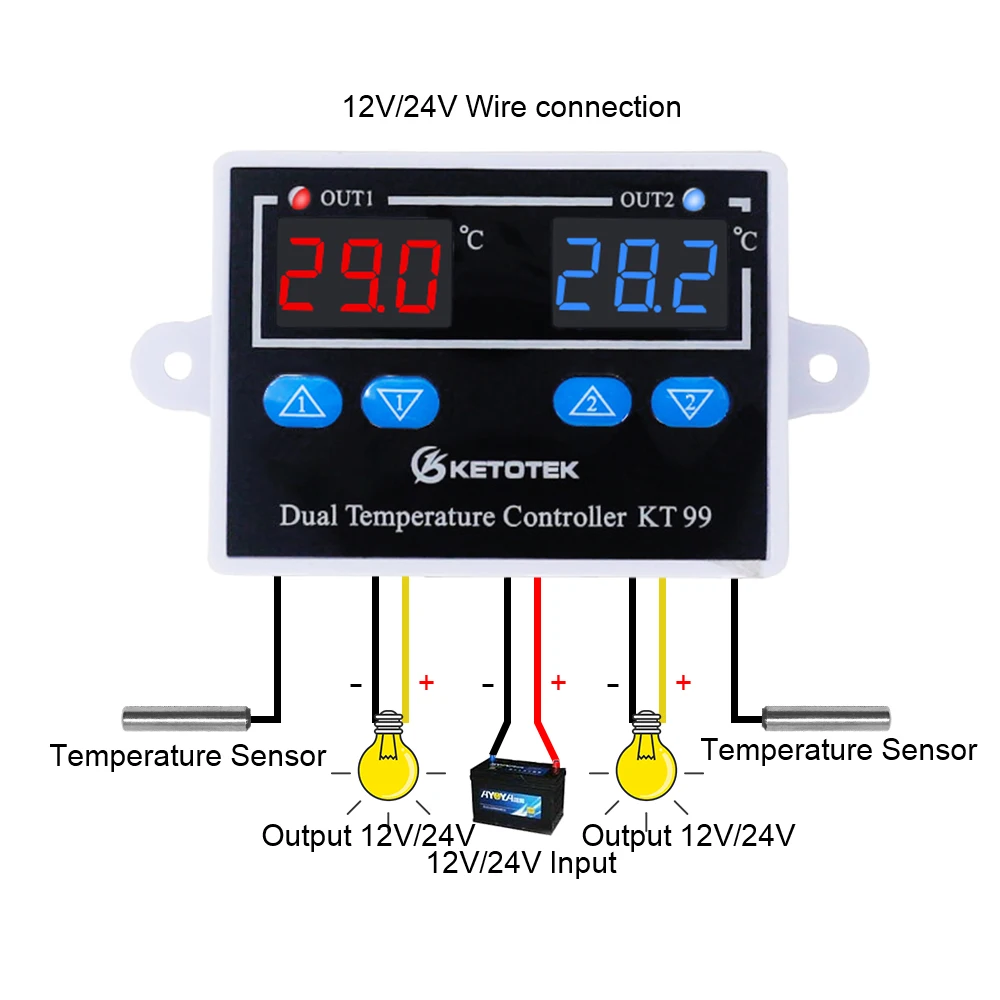

  • ​There is no any output voltage of the controller , it is like a switch , you need to connect a power supply to the load, then it can work.

​Package Content:

  • 1 x Dual Digital Thermostat with Dual Sensors

11IMG_91641IMG_9104

9IMG_9166IMG_910414IMG_91413IMG_91257IMG_9164
