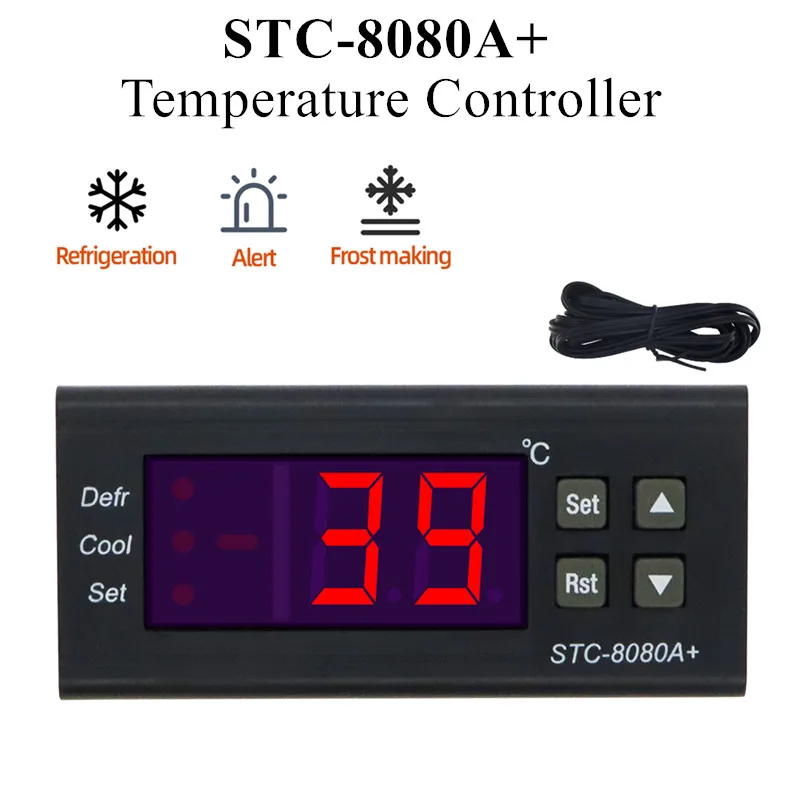

STC-8080A+ Micro-computer Temperature Controller Refrigerator Thermostat Automatic Defrost Intelligent Thermostat Alarm Function 40%off

Description:

STC-8080A+ is a universal temperature controller with single sensor,specify all the functions as refrigerating,defrosting,alarming when temperature exceeds setting limit.

Compressor delay protection time is solidified as 3 minutes,Controller start up and close according to the solidified proportional time when sensor error,which can be applied to the industries such as cold storage,refrigerator car,etc.

Main functions:

·To measure,display and control temperature

·Defrosting cycle and defrosting time is adjustable

·Alarm when temperature exceeds setting temperature limit value

·Compressor start up delay protection

·Compressor work as scheduled time when sensor error

Specifications:

Model: STC-8080A+

Power supply voltage: 220VAC+10%/-15%,50/60Hz

Power consumption: < 3W

Temperature measuring range :-50°C to 99 °C

The temperature range is :-40°C to 50 °C

Measurement accuracy: 1 °C

Accuracy:±1 °C (-40 to 50 °C), ±2°C (Other)

Relay capacity of compressor:10A/220VAC,

Relay capacity of defroster:10A/220VAC

Sensor error relay time :1 minute

Sensor type :NTC sensor

Front panel safe level :IP64

Operating temperature:0°C - +60°C

Relative humidity :20%-85%( No condensate )

Storage temperature:-30°C - 75°C
