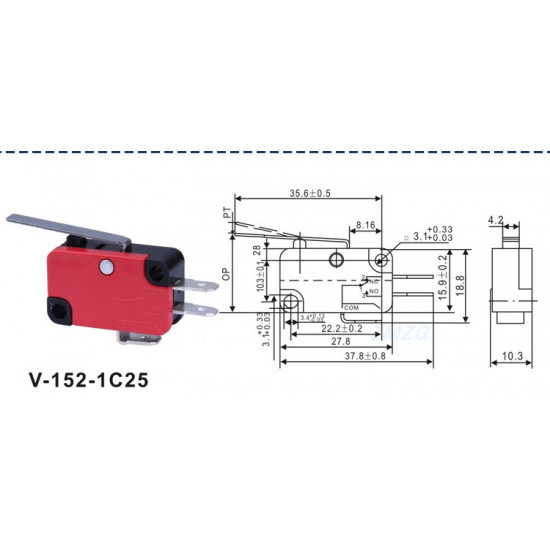

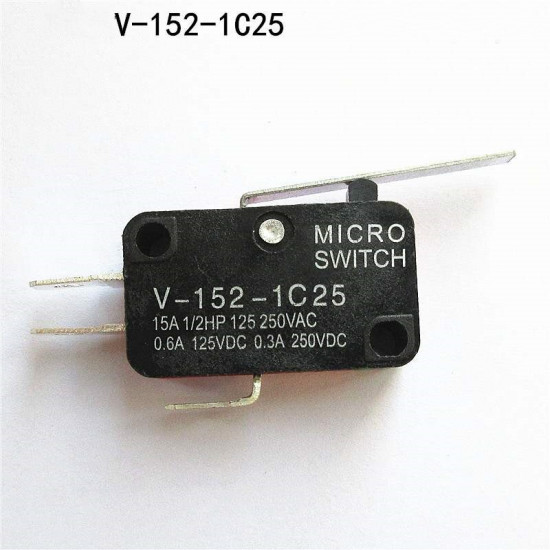

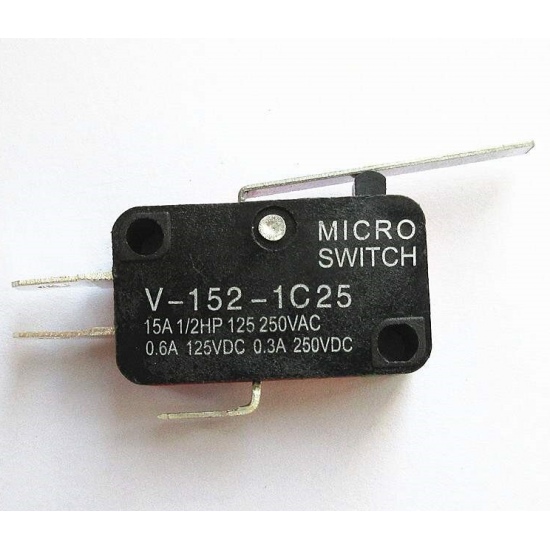

Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC

Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Hot
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC

Specification:
Product Name: Micro Switch
Model No.:V-15-1C25
Contact Type: SPDT 1NO 1NC
Actuator Type: Push Button
Max. Overload Current: 15A 250VAC
Power:
1/2HP 125V/250VAC
0.6A 125VDC 0.3A 250VDC
Switch Body Size(Each): 4 x 2.3 x1.1cm/1.6" x 0.9" x 0.43"(L*W*T)
Fixing Holes Diameter: 3.5mm / 0.14"
Push Button Size: 4.2 x 2.7mm / 0.165" x 0.1" (L * W )
Material :Plastic, Metal
Switch Color: Black, Red, Silver Tone
Package Content: 1/10 Pcs x Micro Switch


Write a review

Note: HTML is not translated!
Bad Good
Micro Limit Switch V-152-1C25 Roller Lever Snap Action 250V 16A 1NO 1NC
  • Stock: In Stock
  • Model: V-152-1C25
  • Dimensions: 40.00mm x 23.00mm x 11.00mm
196 samples sold
180.00DA
