IP68 Waterproof Fingerprint RFID Access Controller
High quality / 120 user capacity / 3 unlock method
User capacity: 120
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 13.56MHz
Card reading type: support MF 1K compatible card
Card reading distance: 0-5CM
Identification method: Fingerprint, RFID card, password
Backlight: has blue backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm

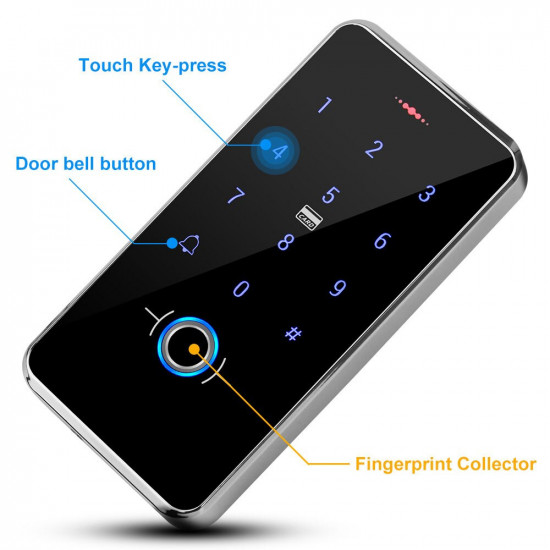

Support 120 fingerprints, 120 cards, 1 public password user capacity, more secure!


IP68 Waterproof. Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm
Blue Backlight keypad
The digits number can be seen clearly even at dark

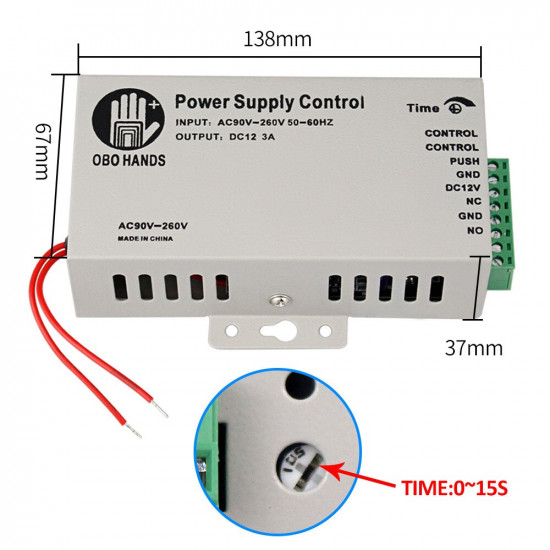

Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm

Operating frequency: 13.56MHz
Detection range: 0-10cm
