Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819

Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Out Of Stock
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819

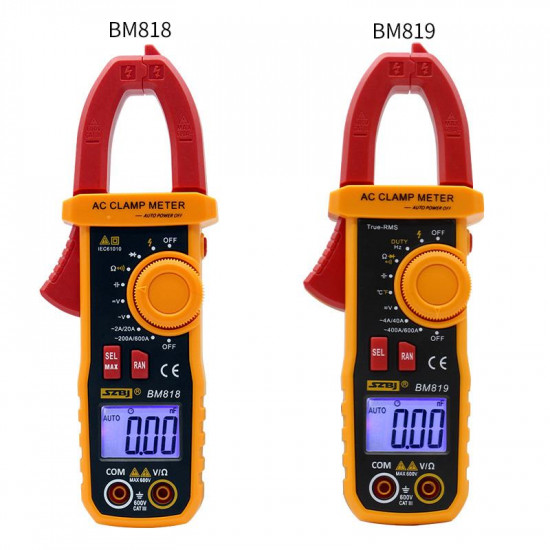

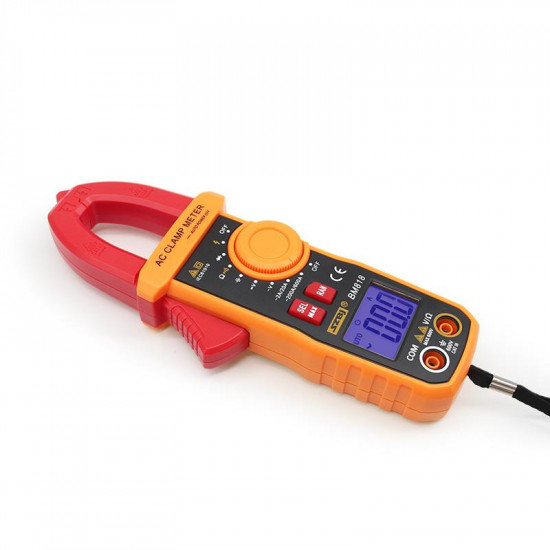

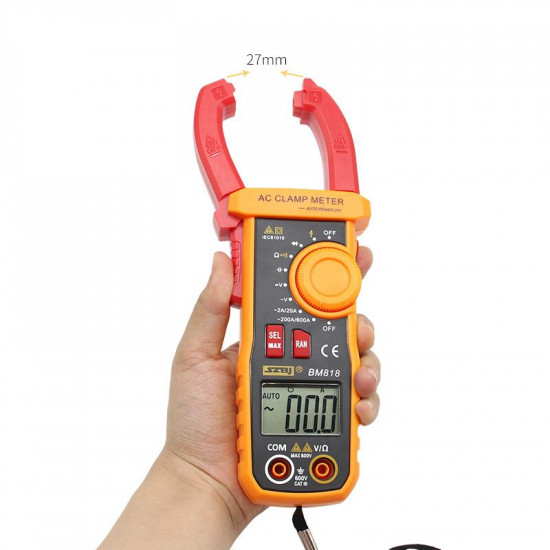

BM818 digital clamp meter

1. automatic range measurement

DCV:200m/2/20/200/600V,

ACV:2/20/200/600V,

ACA:2/20/200/600A,

Resistance: 200 /2k/20k/200k/2M/20M Omega.

Capacitance: 20n/200n/2u/20u/200u/2000uF

2. can accurately measure the AC current of AC20mA to 600A

3. the capacitance value below 2000uF can be accurately measured and the measuring speed is fast.

4. use NCV induction head to judge phase line to accurately measure current.

5. has the function of diode and short circuit beep alarm

The 6. backlight is easy to read in weak light environment.

7. can measure the maximum value of voltage and current

8. has a readable retention function.

9. there is a manual range function

10. automatic shutdown function can be set up or not.

BM819 true value digital  clamp meter
1. automatic range measurement

DCV:400m/4/40/400/600V,

ACV:4/40/400/600V

ACA:4/40/400/600A,

Resistance: 400 /4k/40k/400k/4M/40M Omega.

Capacitance: 10n/100n/1u/10u/100u/1000u/1mF

Frequency: 100/1k/10k/100k/1M/10M/40MHz

2. true value of AC value measurement

2. can accurately measure the AC current of AC20mA to 600A

3. the capacitance value below 10mF can be accurately measured and the measuring speed is fast.

4. has the functions of temperature, frequency and duty cycle measurement.

5. use NCV induction head to judge phase line to accurately measure current.

6. has the function of diode and short circuit beep alarm

The 7. diode can measure the LED operating voltage below 3V.

The 8. backlight is easy to read in weak light environment.

9. has a readable retention function.

10. there is a manual range function

11. automatic shutdown function can be set up or not.
882486491740692136_01
882486491740692136_02
882486491740692136_03
4

Write a review

Note: HTML is not translated!
Bad Good
Ammeter ACV/DCV ACA Auto Range Measurement of large capacitance NCV Digital clamp meter BM819
6,900.00DA
  • Stock: Out Of Stock
  • Model: BM819
