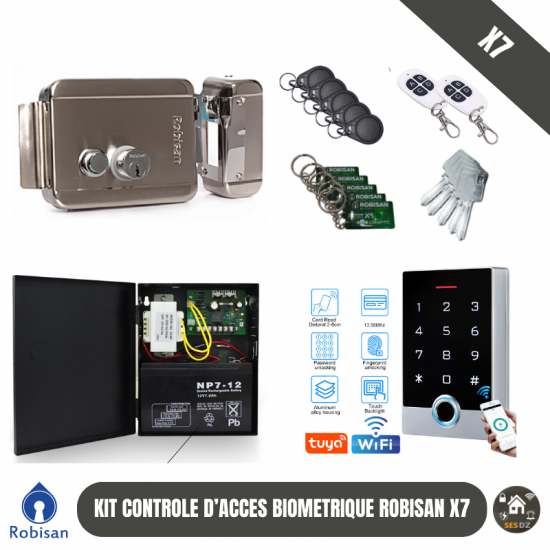

Biometric access control kit connected with ROBISAN X7-Crypto fingerprint

Biometric access control kit connected with ROBISAN X7-Crypto fingerprint

Note: This kit does not contain a backup battery, it only contains the battery slot

Presentation :

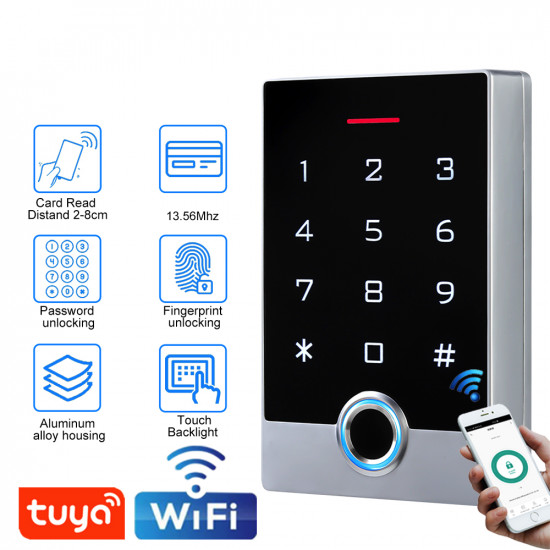

1- Robisan X7 Digicode: is a connected biometric Digicode allowing several opening modes:

- By code: with the keyboard from 0 to 9

- By fingerprint: with the biometric reader included on the keyboard

- By Card or Tag: with tags and encrypted 13.56Mhz frequency cards

- By application: Works with the Tuya application which gives you total control:

     - Remote lock opening

     - Control user authorizations

     - Consultation of opening history

     - Programming hours or opening days for each user

     - Adding or removing cards

2- Power supply unit: The power supply unit is made up of a special card for access control which contains Push, NO, NC outputs for direct control of the lock and allows the addition of accessories such as the videophone or the EXIT button

It also contains a backup battery charging card to ensure continued operation even in the event of a power outage.

Note: This kit does not contain a backup battery, it only contains the battery slot

3- Robisan 558-S 12V electric lock: An electric lock with 12V stainless steel coil

4 - Opening tag: in two models:

    - Mifare Plastic Tag 13.56Mhz

    - Epoxy tag key ring Mifare 13.56 Mhz

5 - Mechanical Keys

Characteristics of the Digicode:

High quality and high safety.

Sensitive and quick response.

10,000 standard users, 300 fingerprint users, 10,000 password users

Support card, password, password plus card, tuya mobile app open the door

With doorbell button

Classic appearance with useful function.

Professional design for home and office.

Supports a door

Can be used as a standalone keyboard

Does not need to connect to computer, can work alone

Application: home/hotel/office/apartment/factory etc.

with LED-backlit touchscreen

Features:

User capacity: 10,000 users + 300 fingerprint users

Operating frequency: 13.56 MHz

Working voltage: DC12V.

Working current: <100m

Reading distance: 0-10cm

Relative humidity: 20% to 90%

AC 220V 3A Access Control Power Supply Box for All Type Electric Door Lock with Delay

Application and Introduction

1. This power supply is suitable for all types of access control and intercom building devices.

It is particularly suitable for different types of electric locks.

2. The lock can be controlled by the control output of the entrance guard controller or other switching signals.

Reduce the interference of reverse induction current of the electric lock with the operation of the entrance guard controller and reduce security

It can be connected to all kinds of normally open (NO) or normally closed (NC) electric locks.

3. Built-in delay circuit can set unlock time; The opening button input can be controlled.

Open the lock: configure the control point, which can input 12V electrical signal to control the lock.

Opening and closing the circuit; The circuit has a built-in protection circuit when the external circuit is shorted and overloaded.

The fuse automatically disconnects and cuts off the voltage output. After troubleshooting, it may be more efficient.

The new fuses are in normal use.

12v electric lock for installation with stainless steel digital code video intercom.

Double coil

Double cylinder

5 flat brass keys

Reversible interior exterior without dismantling
