100PCS Boxed Heat Shrink Connect Terminals Wire Insulated Butt Connectors Waterproof Solder Sleeve Tube Crimp Terminals
Description:

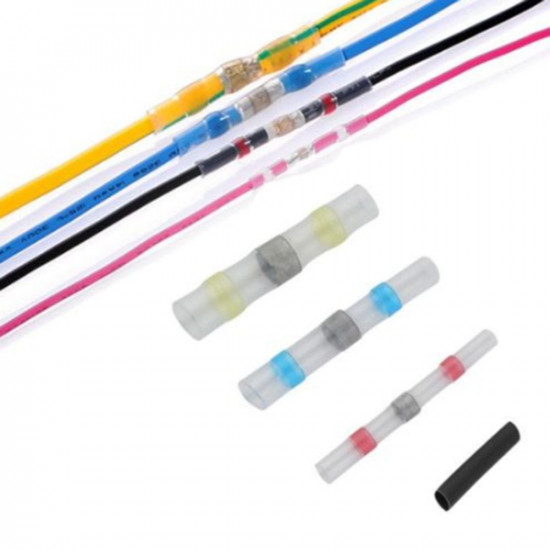

100Pcs Solder Seal Heat Shrink Butt Wire Connector Terminals Copper

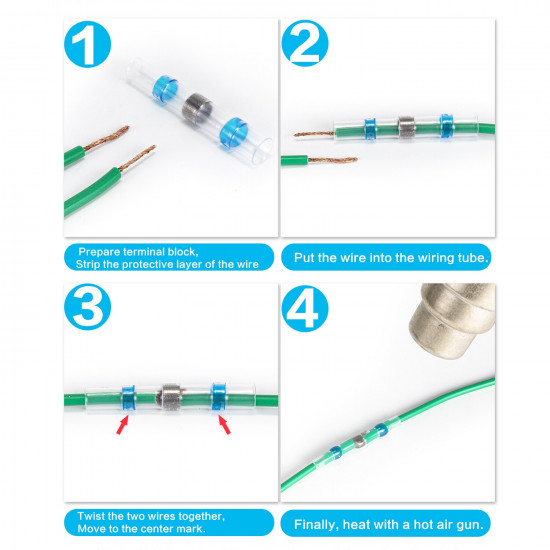

An easy one step connection of wires, soldered, insulated and sealed
Can be ideal use in marine and automobile applications
Polyolefin tubing in outside and hot melt adhesive in inside
Solder and seal and with advanced waterproof function
Polyolefin heat shrink butt connectors improved pullout strength, provides seal, strain relief, cable check, and insulation
Specification:
Insulation: PE
Plating: Tin
Terminal Body: Copper
Operating temperature range
Operating temperature : -55℃~125℃
Minimum shrink temperature : 60℃
Starting temperature of solder melt : 138℃

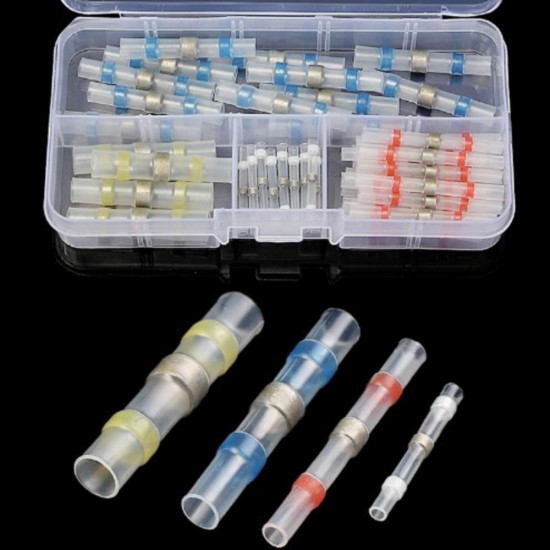

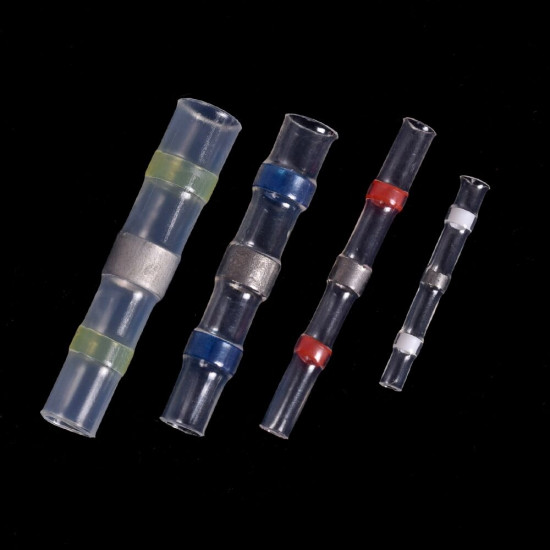

25 x White retractable connectors: diameter 1.5mm, cable section 0.25-0.34mm2 26-24AWG
25 x red retractable connectors: diameter 3.0mm, cable section 0.5-1.0mm2 22-18AWG
25 x blue retractable connectors: Diameter 5.0mm, Cable section 1.5-2.5mm2 16-14AWG
25 x yellow retractable connectors: diameter 6.0mm, cable section 4.0-6.0mm2 12-10AWGTemperature of fully solder melt160℃
Color: Red, Blue, White, Yellow
- Stock: Out Of Stock
- Model: SST-S21
