Applicable to all types of access control panels and electronic locks



Door release buttons are the most common and frequently used in access control systems. They are often used in public authorities, banks, large, small and medium enterprises, department stores and residences.



Specifications:

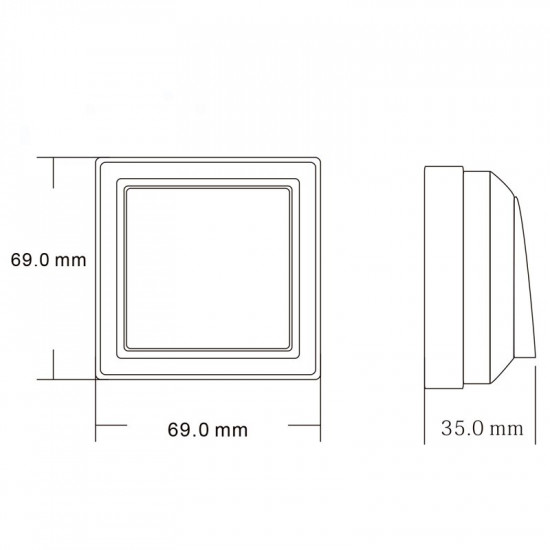

Dimensions:69Lx69Wx35H(mm)

Input:DC12V

Contact at: 3A @ 36VDC Max

Output contact: NO/NC/COM

Mechanical life: 1000000 tests

Suitable for Door: All Kinds of Doors

Operating temperature: -20~+55 degrees (14-131F)

Suitable humidity: 0-95% (relative humidity)

White colour

Weight: 0.06kg



Advantage

1. PC flame retardant material

2.1000000 Test Cycles

3. Two Contact outputs, suitable for all kinds of locks

4. The best choice for access control

Write a review

Note: HTML is not translated!
Bad Good
Exit button for access control RFID card reader
  • Stock: In Stock
  • Model: E17B-1
  • Weight: 60.00g
  • Dimensions: 69.00mm x 69.00mm x 35.00mm
190 samples sold
1,000.00DA
