KIT-DIY-incubator SESDZ-INC-ZL7918-A

sesdz offers you a set of parts in the form of a complete kit for making an incubator at home, all the necessary is included in this kit

The kit includes the following parts:

ZL-7918A Incubator Controller:

Power supply: 100~240Vac, 50/60Hz

A temperature sensor (L = 2.0 meter)

A humidity sensor (L = 2.0 meter)

Setting range: humidity 10~80% RH; Temperature 1~65℃

Display range: humidity 0~99% RH; Temperature -9.9~99℃

Measurement Accuracy: Humidity ±3% @ 25℃; Temperature ±1% @ 25℃

Output control: 7 outputs

(Main heater, auxiliary heater, lamp, humidity, right-turning egg, left-turning egg, fan)

Output load: heating ≤ 1500W; Lamp ≤ 100W; Humidity, egg turning and fan ≤ 1A/250Vac

Hatching days counter: the maximum value is 99 days

Egg turning control: turning period: 1~999 minutes driving time: 0~999 seconds

Rotation time counter: 0~999 times

Air exhaustion control: period: 1~999 minutes; Exhaustion time: 0~999 seconds

Lamp control: period: 1~999 minutes; Lighting time: 0~999 seconds

Operating environment: -10~45℃; Less than 90% RH without dew

Device dimension: 160*80*95mm

Installation drilling size: 151.5*76.5m

Fan:

Voltage: AC 220-240V, 50/60Hz

Rated current: 0.1A;

External Material: Metal

Black color;

Size: 12x12x2.5cm/4.7x4.7x1(L*W*H);

Cable length: 28cm / 11

egg turning motor:

Model: 60ktyz (center shaft)

Power: 14W

Voltage: AC 220V/110V

Shaft size: approx 7mm x 19mm

Rated speed: 2.5r/min

Packing: pieces

Characteristics:

This product is composed of a permanent magnet synchronous motor, and one of the synthetic speed reduction mechanisms, reversible synchronous motor can be controlled.

With low power consumption, large torque, low noise, small volume, light weight, easy to use features.

At the rated voltage frequency of the motor speed is not affected, remains stable.

When the motor is overloading or stalling, the motor coil does not burn out!

Air humidifier:

Housing material: full plastic

Rated voltage: AC 24V

Plug: female plug

LED color: red, yellow, blue

Working temperature: +5~45℃

Best running level: 40-60mm

Atomization amount: 500ML/H

Atomizing head height: 15mm / 0.6 inch

Line length: approx. 1.2M/47.2inch

Atomizing head: approx. 4.6*2.5cm / 1.8*1.0 inch

Product weight: approx. 105g

Limit switch :

Product Name: Micro Switch

Model No.:V-15-1C25

Contact Type: SPDT 1NO 1NC

Actuator type: push button

Max. Overload Current: 15A 250VAC

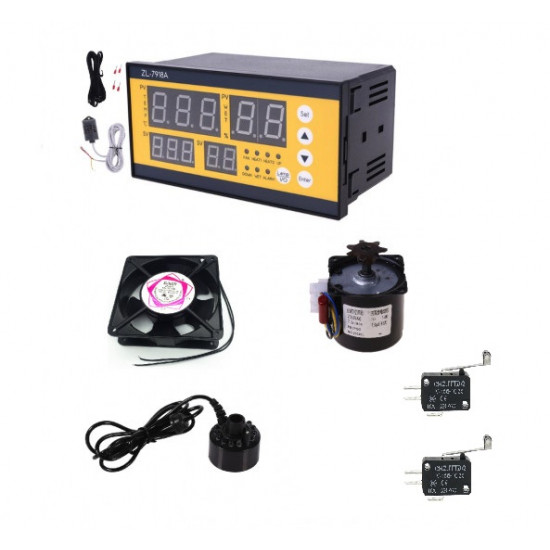

The kit contains: 1 ZL7918A controller, 1 turning motor, 1 humidifier, 1 fan , 2 limit switches

Note: the resistor is not included in the kit, it is an option that can be added separately from the order
