sesdz offers you a set of parts in the form of a complete kit for making an incubator at home, all the necessary is included in this kit


The kit includes the following parts:


XM18 Incubator Controller:

Main Technical Index:



1. Temperature display range: 0~99.9 C

2. Temperature measurement accuracy: ±0.1 C

3. Humidity display range: 0-99%RH

4. Humidity control accuracy: ±3%RH

5. Output path: 7 road (over temperature, temperature control, insufficient temperature, egg left-turning, egg right-turning, humidity control, alarm)

6. The maximum output load current: temperature control, insufficient temperature <=8A/ac 220V, overheating, egg left-turning, egg right-turning, humidity control, alarm <=1A/ac 220V

7. Number of eggs turning: Maximum record 999 times.

8. Egg turning cycle: 0-999 minutes (factory setting 90 minutes)

9. Turn egg time: 0-999 seconds (factory set to 180 seconds)

10. Ventilation cycle: 0-999 minutes (factory set to 120 minutes)

11. Ventilation time: 0-999 seconds (factory setting 30 seconds)

12. The length of the measuring line: 1.5 meters



Working conditions:

1. Power supply: AC 160V~240V, 50Hz or AC 110V (choose the one you need)

2. Relative humidity: less than 85%

3. Ambient temperature: -10~60C



Fan:


Voltage: AC 220-240V, 50/60Hz

Rated current: 0.1A;

External Material: Metal

Black color;

Size: 12x12x2.5cm/4.7x4.7x1(L*W*H);

Cable length: 28cm / 11


egg turning motor:


Model: 60ktyz (center shaft)

Power: 14W

Voltage: AC 220V/110V

Shaft size: approx 7mm x 19mm

Rated speed: 2.5r/min

Packing: pieces

Characteristics:

This product is composed of a permanent magnet synchronous motor, and one of the synthetic speed reduction mechanisms, reversible synchronous motor can be controlled.

With low power consumption, large torque, low noise, small volume, light weight, easy to use features.

At the rated voltage frequency of the motor speed is not affected, remains stable.

When the motor is overloading or stalling, the motor coil does not burn out!


Air humidifier:


Housing material: full plastic

Rated voltage: AC 24V

Plug: female plug

LED color: red, yellow, blue

Working temperature: +5~45℃

Best running level: 40-60mm

Atomization amount: 500ML/H

Atomizing head height: 15mm / 0.6 inch

Line length: approx. 1.2M/47.2inch

Atomizing head: approx. 4.6*2.5cm / 1.8*1.0 inch

Product weight: approx. 105g


Limit switch :


Product Name: Micro Switch

Model No.:V-15-1C25

Contact Type: SPDT 1NO 1NC

Actuator type: push button

Max. Overload Current: 15A 250VAC

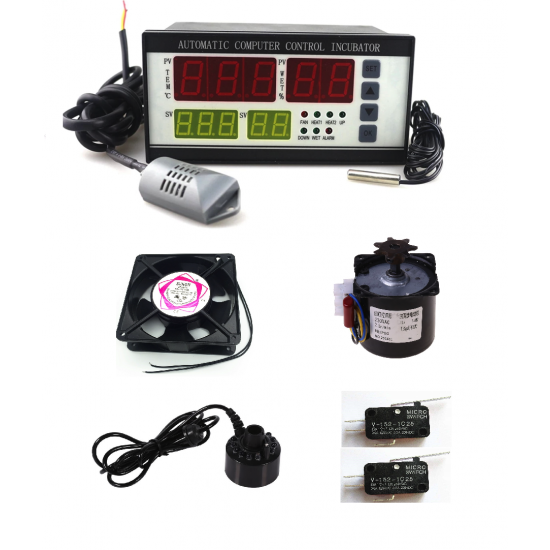

The kit contains: 1 XM18 controller, 1 turning motor, 1 humidifier, 1 fan , 2 limit switches

Note: the resistor is not included in the kit, it is an option that can be added separately from the order
