Digital Thermostat Socket Temperature Controller 16A 220V Ketotek KT3100

Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
Digital Thermostat Socket  Temperature Controller 16A 220V Ketotek KT3100
1. Function
The external temperature detector can detect the temperature
Set the start and stop temperature
Cycle timing, start and stop time, timer switch
It is widely used in intelligent control, such as carbon heating, aquaculture,greenhouse, home life and other places.
2. Technical parameters
Voltage 100-250V AC 50Hz
Max Load: 16A(2) 3680W.u (15A for US type )
Temperature Range: -40~120°C
Accuracy: +/- 1%
Timing Accuracy: MAX 10 minutes
Temperature range: -40~120°C
Open circuit (or less than -40°C), the first row of the screen flashes display "E1", -40~-45°C, display -40°C
Short circuit( or more than 120°C ), the first row of the screen flashes displaty "E2", 121-129°C display  120°C
Lower than -10°C, or higher than 100°C, it will not display value behind the decimal point
Refrigeration mode, start temperature > Stop temperature
Heating mode, start temperature < stop temperature
3. Mode button

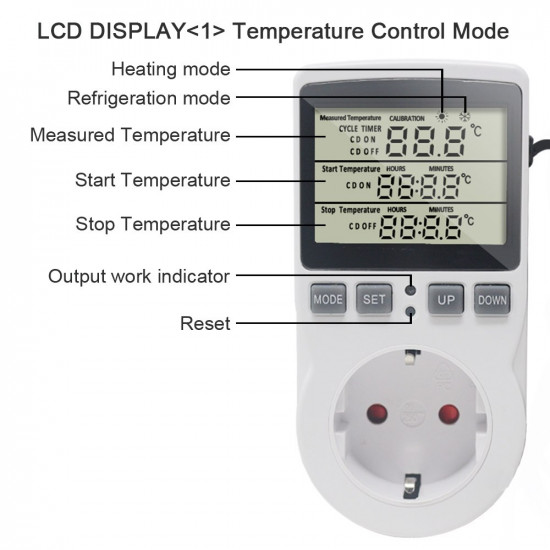

Press MODE. LCD display: temperature control mode
Timing mode F01-F04
F01Cycling timing mode, start time(ON)/stop time(OFF) cycling timing.
F02Count down ON mode, now Ti.s OFF, delayed(start time) ON
F03Count down OFF mode, now Ti.s ON, delayed(stop time) OFF, countdown completion, turn off the output and exit the run
F04Count down ON Count down OFF mode, now Ti.s OFF, delayed(start time) ON, After starting delayed ( Stop time )OFF, Stop the time to finish the countdown, close out the output and exit the operation
Temperature correction function
Long press mode button on electricity, real time temperature  calibration after 2 seconds
Real time temperature correction range: -9.9~9.9°C
Long press the SET for 5 seconds to automatically exit, do not save modification
Long press MODE button to exit, save the cuttent correction modification
Screen lock protection function
Press the RESET to restore the screen for one second, and restore the factory settings.
Long press MODE for 5 seconds, Then the heating or the coolling mode will flash, then it can work
Memory function after power off
Package Content
1 x Thermostat Timer Socket with temperature sensor
1 x Box



Write a review

Note: HTML is not translated!
Bad Good
Digital Thermostat Socket Temperature Controller 16A 220V Ketotek KT3100
6,300.00DA
  • Stock: 5
  • Model: KT3100

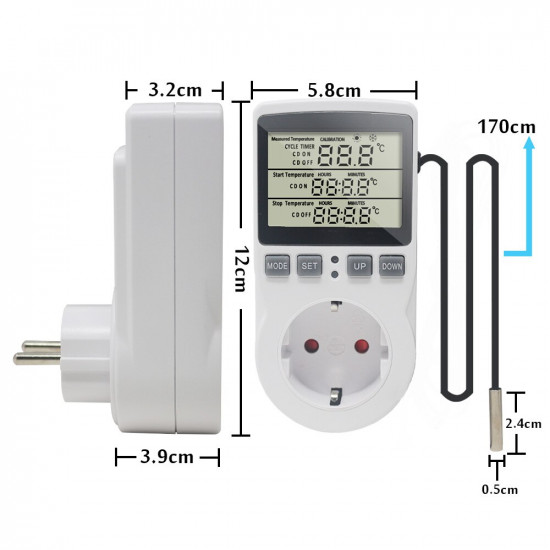

  • Dimensions: 120.00mm x 58.00mm x 39.00mm
