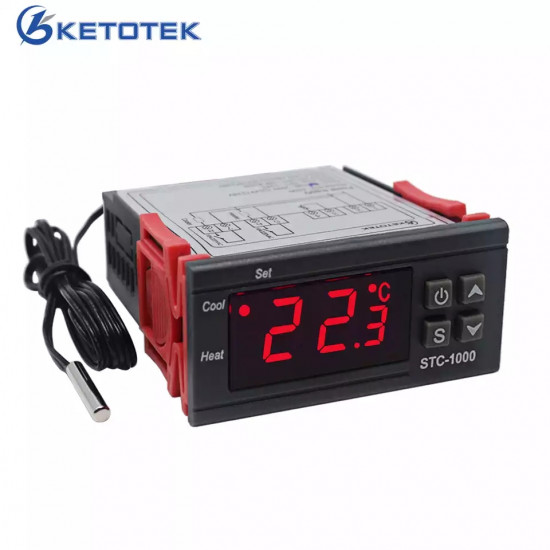

stc1000



Digital Temperature Controller Thermostat Thermoregulator incubator Relay LED 10A Heating Cooling STC-1000 12V 24V 220V



Feature



  • Switch the modes between cool and heat;
  • Control temperature by setting the temperature setting value and the difference value;
  • Temperature calibration;
  • Refrigerating control output delay protection;
  • Alarm when temperature exceeds temperature limit or when sensor error.
  • All parameters setting can be saved when power off.
  • Can be used for domestic freezer, water tanks, refrigerator,industrial chiller, steamer, industrial equipment and other temperature control applications.



parameters





STC-1000

Modes

Heating and Cooling

Display

° C

High temperature

alarm limit setting

NO

Temperature measuring range

-50 ° C ~ 99 ° C

Return difference Value:

0.3~10.0°C

Resolution

0.1 ° C

Accuracy

+/- 1° C (-50 ° C ~ 70 ° C)

Power supply

110-220VAC 50/60Hz,  12VDC , 24VDC

Power Consumpption

<3W

Sensor error delay

1 minute

Output Relay

Two Relay Cool 10A/220VAC; Heat 10A/220VAC

NTC sensor

1m

Delay start and temperature calibration

Yes

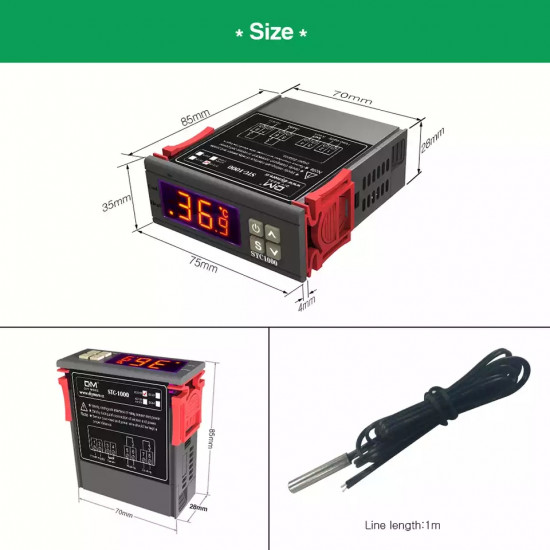

Size

75mm(L)*34mm(W)*85mm(Depth)

Mounting Size

71(L)*29(W)mm



Specification



Code

Function

Set Range

Default

F1

Temperature set value

-50.0~99.9°C

10.0°C

F2

Difference set value

0.3~10.0°C

0.5°C

F3

Compressor delay time

1~10 minutes

3 minutes

F4

Temperature calibration value

-10.0°C~10.0°C

0°C



Package Content



  • 1 * Temperature Controller ( No including retail box )
  • 1 * Temperature sensor
  • 1 * Instruction Manual

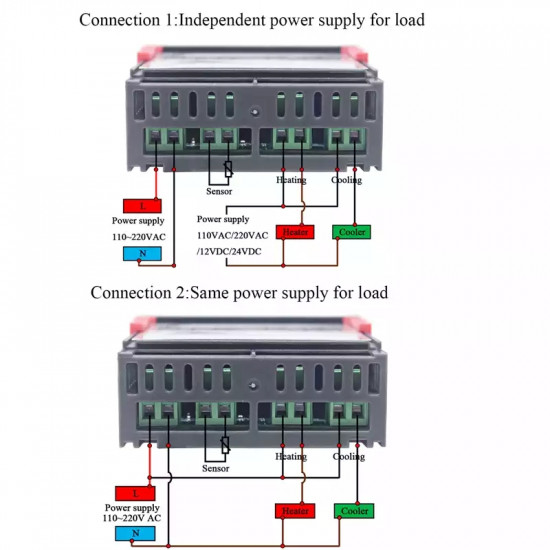

Power supply AC110V  220V Wire Connection:

Notes: There is no voltage output directly, you need to use additional power supply for the load.



_













Version 2 3 :  power supply DC12V or 24V Wire Connection:

Notes: There is no voltage output directly, you need to use additional power supply for the load.



F0025 12V  24v







Products more details:

F0025

1

23

56

8

f0025 mm_

All purpose used to control temperature:



Embedded installation:

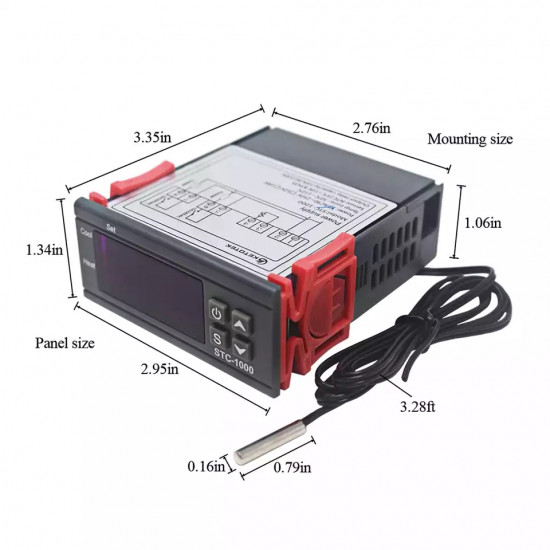

Front Panel Size: 75x34.5mm ;   Product Size: 75x34.5x85 mm ;   Mounting Size: 71x29mm

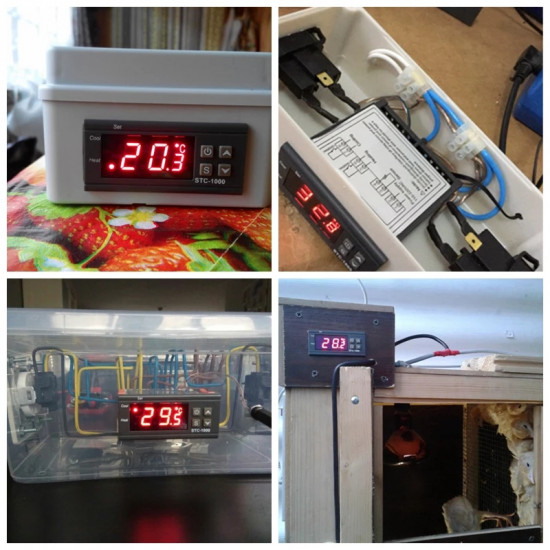

Part of usage from customers:



>>Want thermostat with Fahrenheit and Celsius display ?

Click following KT1000 temperature controller. Add to cart and place order.

f0025 2 300c300



>>Want thermostat with heating and cooling outlet  ?

Click following KT4000 temperature controller. Add to cart and place order.

6_副本300x300



>>Want to use other sensor?

>>1m sensor wire is not enough ?

See following different sensor optional. Add to cart and place order together.



  • There has three sensors in our store, first one send in default, the second one is thread type sensor, the third one is longtime waterproof type, if you need them, please add them to the cart and place the order together.



The cable of the followings is 1m

F0044F0046F0045



The cable of the followings is 2m



F0075F0077F0076
