Smart electric solutions Hands Door Access Control System Kit RFID Keypad + Power Supply + Electric Lock Door Locks for HomeA complete set of entrance guard system for doors which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you
Product Description
Access Controller:
User capacity: 1000
Card reading type: EM card
Card reading distance: 1-5CM
Identification method: card, password, card + password
Programming password: 123456
Unlocking time: 5 seconds
Open the door input: all the way to open the button input
Doorbell output: one way wired doorbell output
Can be connected to automatic door or gate
Working voltage: DC 12V ± 10%
Working power supply: <100mA
Working temperature: 0 ° C ~ 60 ° C
Power Supply:
Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm
RFID Keyfobs:
125KHz rfid frequency key card
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.

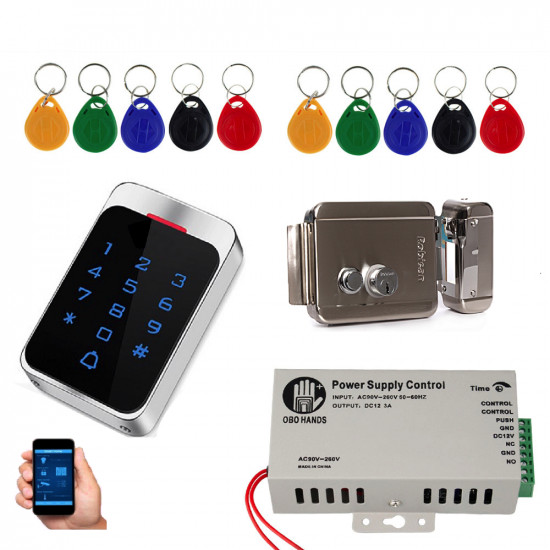

Package List
SET 3:
1 Access Controller
1 Power Supply
10 RFID Keyfobs
1 wifi controller
1 Electric lock
Set of Door Access Control System Kit RFID Keypad + Power Supply + Electric Lock Door Locks for Home SESDZ-003
22,100.00DA
