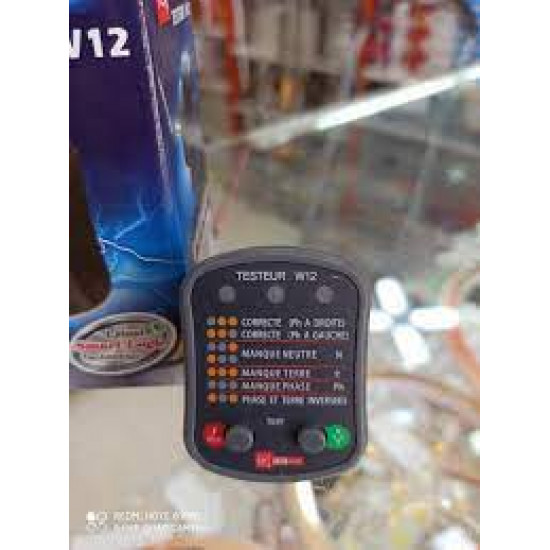

CAMELEC W12 socket tester

CAMELEC W12 socket tester
CAMELEC W12 socket tester
CAMELEC W12 socket tester
New
CAMELEC W12 socket tester
CAMELEC W12 socket tester
CAMELEC W12 socket tester

Technical characteristics:

working voltage: 220V +/- 10%

Frequency: 50Hz

Temperature: -15 to 50 ° C

Weight: 46g

Dimensions: 55X40X60 (mm)

Neutral and earth inversion test:

Press the green button

If the circuit breaker cuts out, the neutral and the earth are reversed.

If the circuit breaker does not turn off, there is no reversal

To note

This tester will not detect the reversal if no GFCI is linked to the circuit of the outlet

Differential sensitivity (up to 30 mA)

Functional test of the differential circuit breaker

Press the red button

If the circuit breaker cuts out the test is good

if it does not turn off, the circuit breaker is not active (to be checked or changed)

To note:

The test will not take place if no residual current circuit breaker is linked to the socket circuit

Differential sensitivity (up to 30 mm)

Write a review

Note: HTML is not translated!
Bad Good
CAMELEC W12 socket tester
  • Stock: In Stock
  • Model: W12
  • Weight: 46.00g
  • Dimensions: 55.00mm x 40.00mm x 60.00mm
190 samples sold
1,900.00DA
