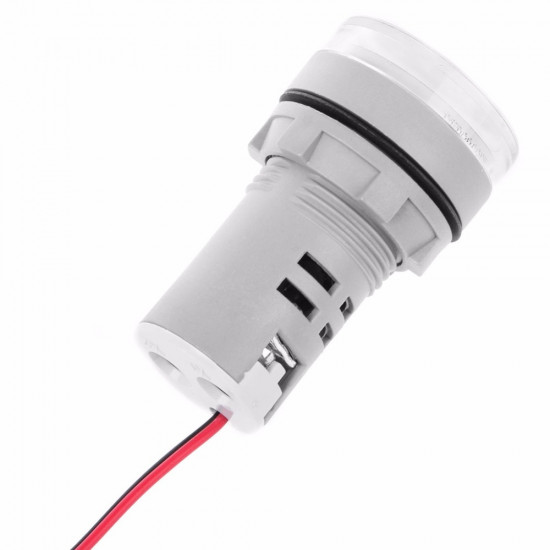

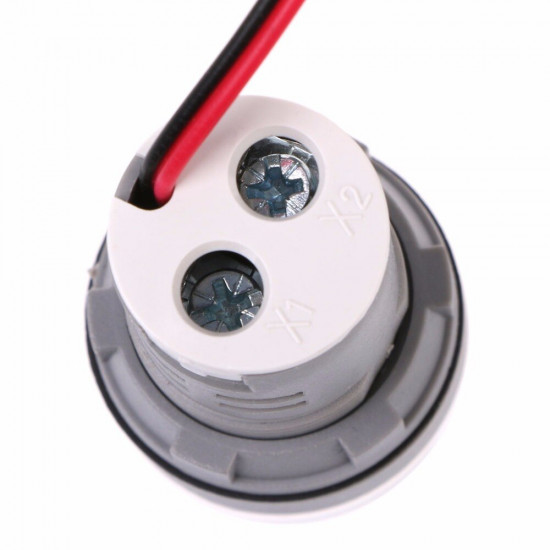

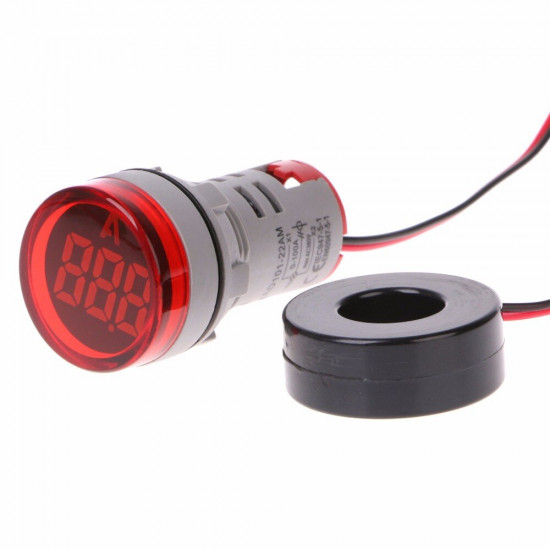

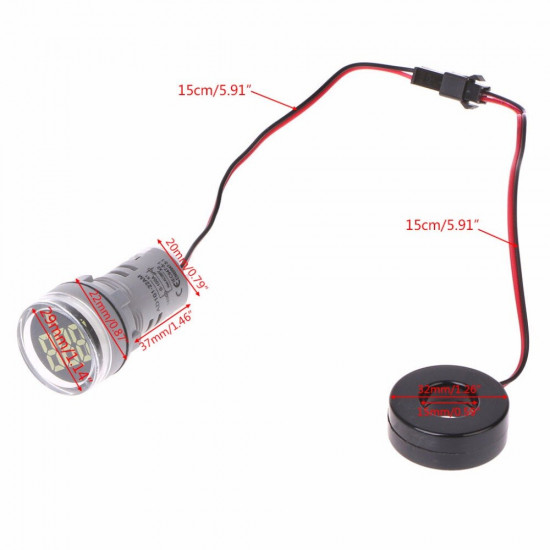

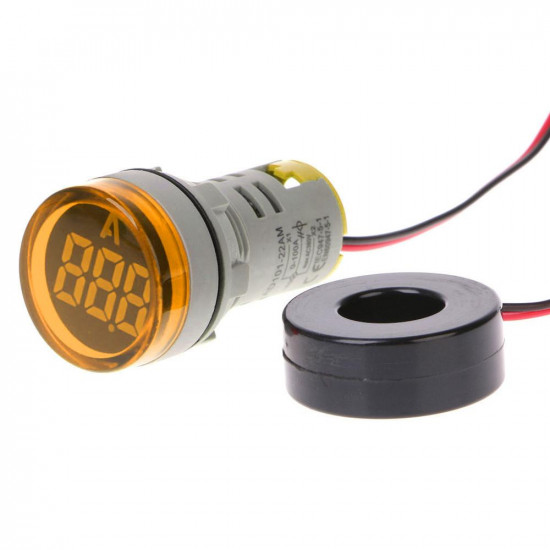

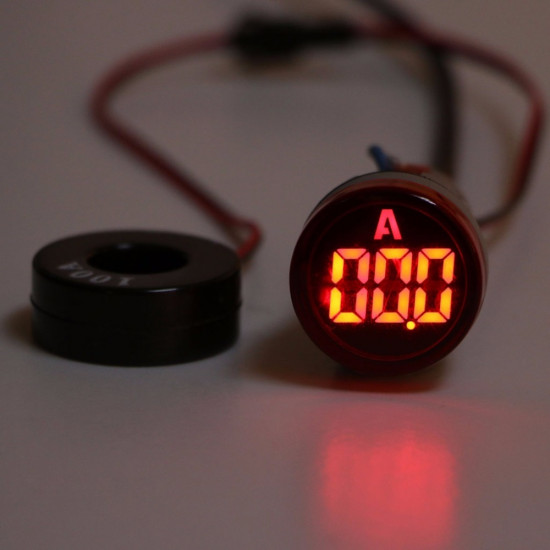

Ammeter current meter AC 0-100A 22mm TOMZN

1. Model:
 TO22-A indicator light (pilot light) Ammeter

2. Features:

Lens Material: PC;
Lighting Source:  LED;

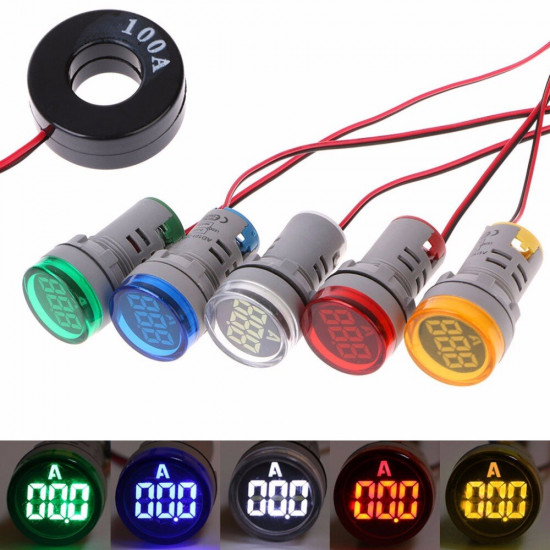

Color of lamps: R-red, Y-yellow, G-green, B-Blue, W- White
Volt.: 1V--500V;

Current: 0-100A, 0-50A
Nature of supply: AC ;
Rated Temp : T90;
Life of continuous working: Typically over 30,000 hours. The end of life for a lamp is not usually a sudden failure;

3. Main technical parameters
Environmental Temperature: -25+55;
Working under vibration frequency 2-80Hz,acceleration at 0.7g;
Relative Air Humidity: ≤98%;
Pollution rank is three grade and installation category is III;
Protection Degree: Head IP65
Voltage of working frequency: 2.5kV (AC valid value), 1min;
Leakage Index: CT1≥100;
Frequency: AC 50-60Hz
