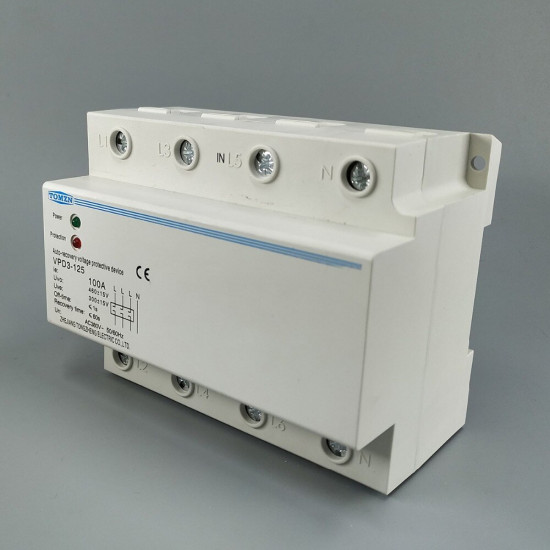

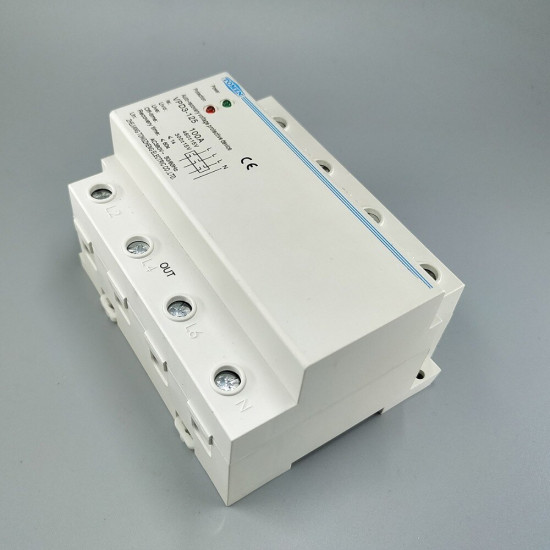

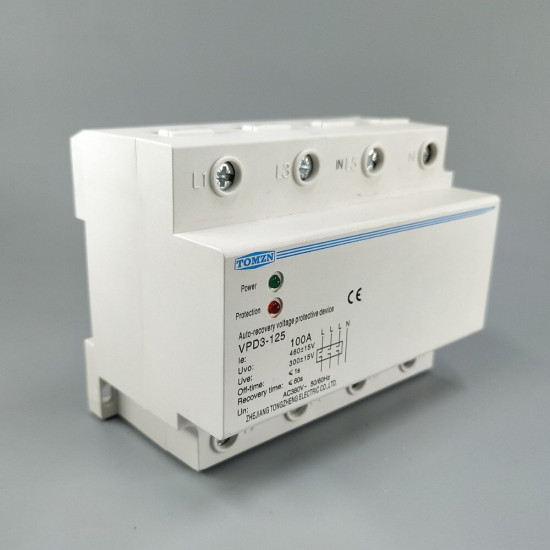

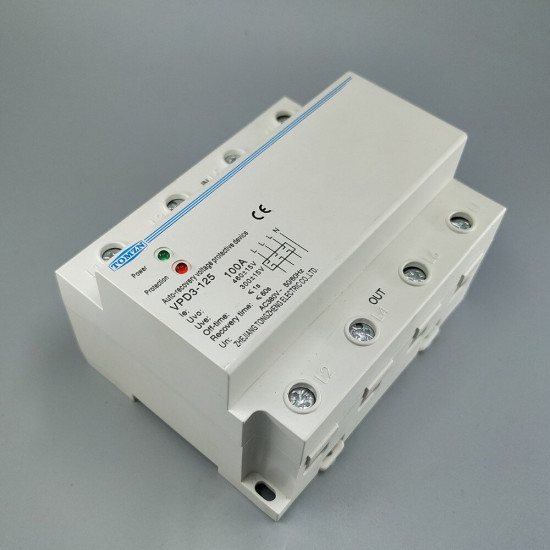

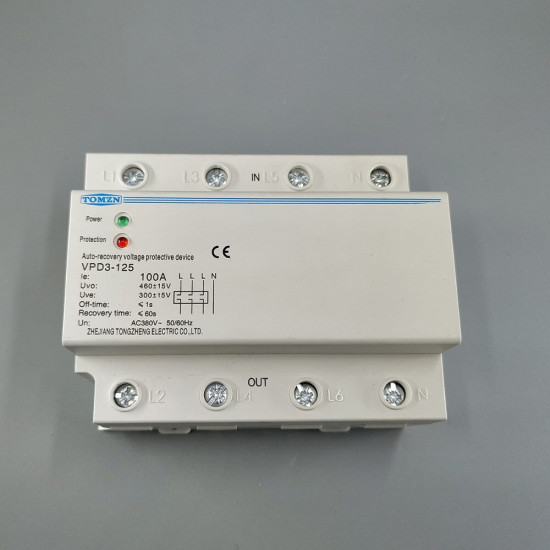

Under voltage and over voltage protector 3 phase 4 wire 100A

The automatic recovery over voltage and under voltage protective device complies with modular design standards. the circuit boards of products adopt good quality electronic components with reliable performance. when the power situation is unstable. It's protection function will be automatically activated. once the voltage exceeds the limited range of products, it will automatically cut off so as to protect the safely of electrical equipment and persons. The device will re-supply after 1 minute, when the power returns to normal.

The green indicator display, when the power is normal supply.

The red indicator display, when the power over voltage or under voltage.

Installing: 35mm Din rail.

Main Technical Speacification:

1. Rated AC voltage 380V±10% and frequency 50Hz/60Hz

2. Passing Max Current: 100A

3. Max. Loading power: 38KVA

4. Over-voltage action cut-off value: >460VAC+/-15V

5. Normal-voltage value: 300-460VAC

6. Under-voltage action cut-off value: <300VAC+/-15V

7. Over voltage and under voltage cut-off:< 1s

8. Electricity transmitting delay after cut-off: <60s

9. Self power consumption<2W

10. Electric machinery life=100000 times

11. Installing: 35mm Din rail

13  wire:

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()



aeProduct.getSubject()


Write a review

Note: HTML is not translated!
Bad Good
100A 380V Three Phase four wire Din rail automatic recovery over voltage and under voltage protective protection relay
  • Stock: 2-3 Days
  • Model: VPD 3-125
  • SKU: 1
190 samples sold
3,950.00DA
