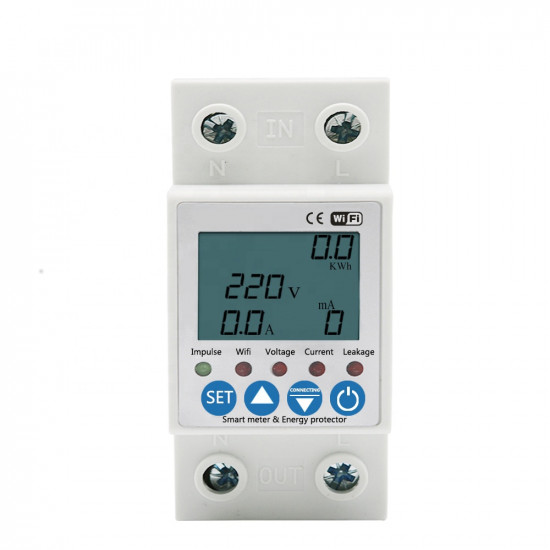

Function:

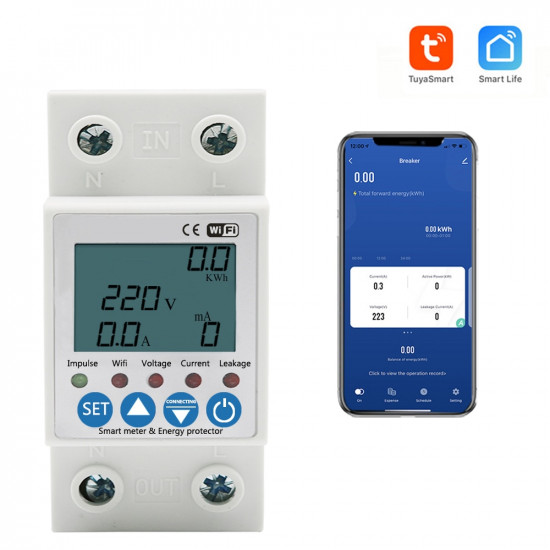

1.Remote control at anytime from anywhere
2.Schedule/Timer/loop timer
3.Energy monitoring
4. Under voltage protection 150V-190V (adjustable) (default: 170V)
5. Over voltage proteciton 250V-300V (adjustable) (default: 270)
6. Over current protection 1A-63A (adjustable) (default: 63A)
7.Electric leakage protection:10-99mA
8.Preset current/voltage threshold values by app,Once the real-time/current/voltage reaches the threshold values,The connected electrical appliances will be automatically turned off
Technical Data | |
Rated Supply Voltage | AC 220V |
Operation Voltage Range | AC80v-400v(single phase) |
Rated Frequency | 50/60Hz |
Electric Current (>A)setting range | 1-63A |
Overvoltage (>U) setting range | 250-300V (adjustable) |
Undervoltage( | 150-190V (adjustable) |
Electric Leakage Protection | 10-100mA(This feature can be turned off) |
Error | 2% |
>U and<U trip delay | 0.5s |
Reset/Start Delay | 5s-90s |
Voltage Measurement Accuracy | l%(Not exceeding1%of the overall range) |
Rated Insulation Voltage | 400V |
Output Contact | 1NO |
Electrical Life | 105 |
Mechanical Life | 106 |
Protection DegreeProtection Degree | IP20 |
Pollution Degree | 3 |
Altitude | ≤2000m |
Operating Temperature | (-30°C^70°C |
Humidity | <50%at40°C (without condensation) |
Storage Temperature | -30°C~70°C |
Power Display Range | 0-99999.9kw/h |
