Please check if your garage controller is compatible with our module.
You can use the pliers to short-circuit the wall button terminal on the opener. If the garage door opens or closes, it can work with our smart controller.
Make Your Garage Door Smart
Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site.
Voice Control by Google Home, or Alexa.

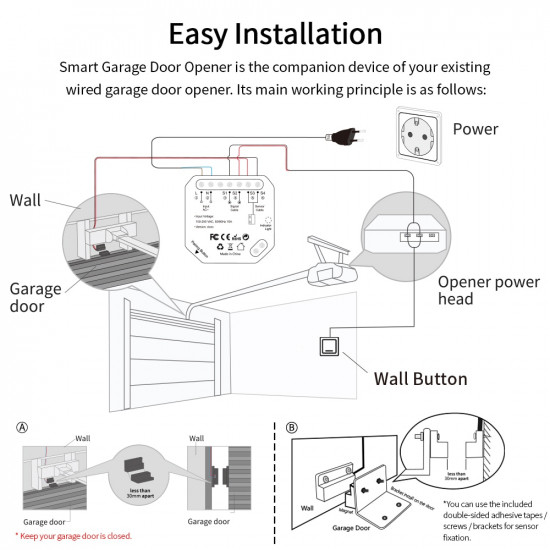

The main working principle is as below.
Easy Installation Guide

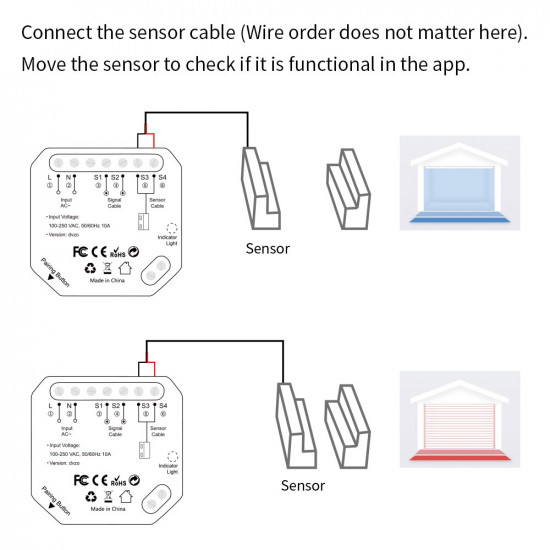

Find a proper position on the garage door to mount the sensor(You
can use the included double-sided adhesive tapes, screws or brackets
for sensor fixation). Please make sure the distance between the two
sensors is less than 30mm when the garage door is closed, and the two
sensors are well separated when the garage door is open.
Voltage: 100-250VAC, 50/60Hz
sensor action distance: below 30mm
length of the sensor cable: 5 meters
Wireless Protocol: Wi-Fi 2.4 Ghz( don't support 5Ghz Wifi band)
APP Name: Smart Life, Tuya
Voice Conrol: Google Assistant, Amazon Echo Alexa
Plastic Material: Fireproof ABS
Certification: CE, RED, EMC, RoHS
Produced by ISO9001:2015 factory: Yes
Patented Product: Yes
We have all the accessories you need in the box, you don't need to pay extra cost.
What's in the box?

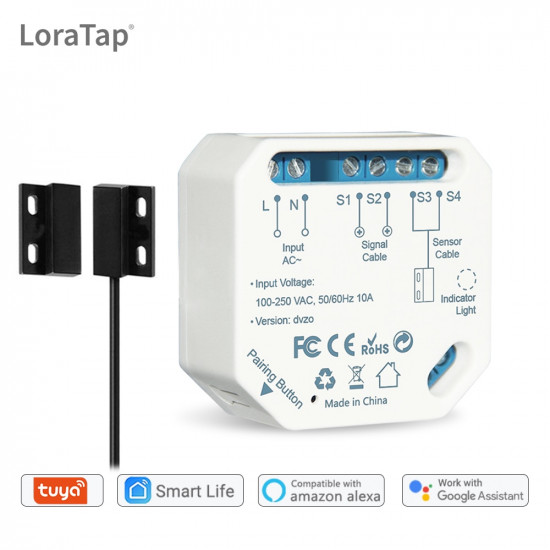

1 * Smart Garage Door Opener
1 * 5 meters Sensor Cable
1 * Sensor
1 * Signal Control Cable
1 * AC Power Plug
4 * Double-sided adhesive
10 * Cable ties adhesive for cable management
10 * Steel nail line card for cable management
1 * Bracket
1 * Screw Driver
1 * User Guide
