UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter

UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
Out Of Stock
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter

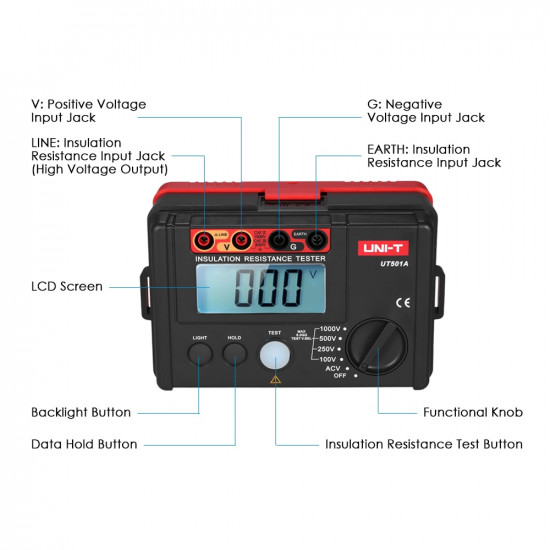

Features:
For measuring insulation resistance, AC voltage, DC voltage, etc.
2.7"(65*25mm) large LCD screen with large digital-readout with backlight for clear reading.
Overload indication for safety operation.
Automatic measurement and discharge voltage automatically.
Red alarm light is on when high voltage outputs.
Low battery indicator to remind you to replace battery to ensure measurement accuracy.
10MΩ internal resistance test.
Features of high accuracy, stable performance, easy operation and reliability.
Professional in electric equipment maintenance, testing and inspection.
Red lid to protect the button and screen of the meter.
Storage pouch included, smooth zipper closure.

Specifications:
Material: PP
Max. Display: 1999
Insulation Resistance(Ω): Test Voltage: 100V/250V/500V/1000V 0%~10%
100V: 0.00MΩ~100MΩ ±(3%+5)
250V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
500V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
1000V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
Load Current: 50V(R=50KΩ) 1mA  0%~10% ; 100V(R=100KΩ) 1mA 0%~10% ; 250V(R=250KΩ) 1mA 0%~10%
500V(R=500KΩ) 1mA 0%~10% ; 1000V(R=1MΩ) 1mA 0%~10%
Short Circuit Current: <2mA
AC Voltage (V): 30V~750V ±(2%+3)
Working Temperature: 0~35℃
Storage Temperature: -20~60℃
Power: 6 * 1.5V Alkaline batteries (not included)
LCD Size: 65 * 25mm / 2.56 * 0.98in
Item Size: 150 * 100 * 71mm / 5.91 * 3.94 * 2.79in
Item Weight: 588g / 20.75oz

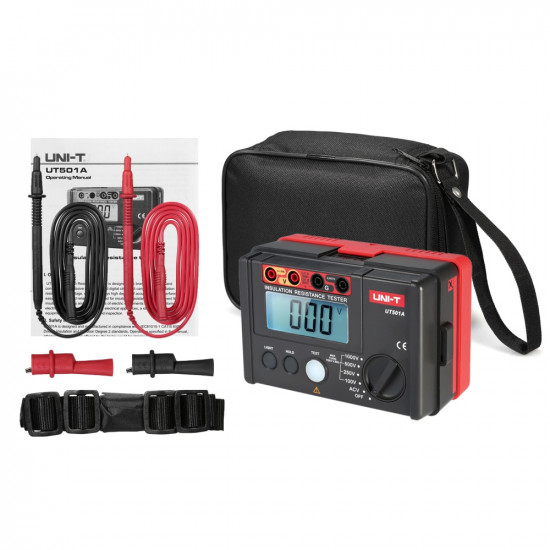

Package List:
1 * Insulation Resistance Meter
1 * Pair Test Lead
1 * Pair Alligator Clips
1 * Carrying Bag
1 * English Manual









Write a review

Note: HTML is not translated!
Bad Good
UNI-T UT501A Insulation Resistance Tester 2000 Count LCD Display Overload Indication Backlight AC Voltage Measurement Meter
23,000.00DA
  • Stock: Out Of Stock
  • Model: UT501A
  • Weight: 588.00g
  • Dimensions: 150.00mm x 100.00mm x 71.00mm
