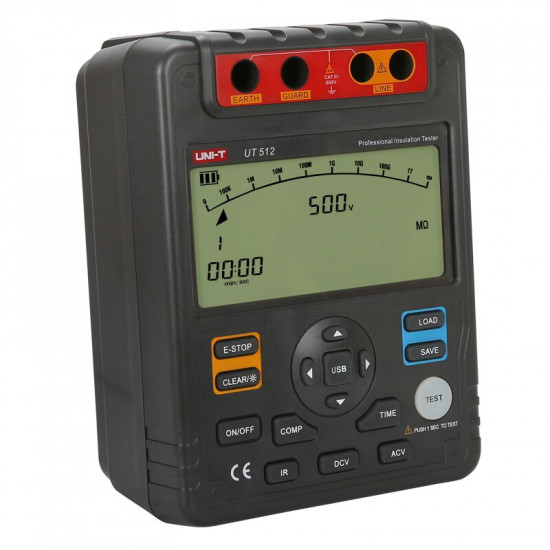

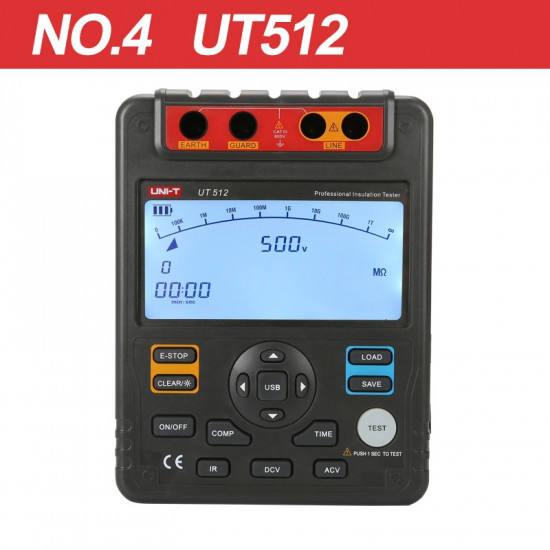

UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter

UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
New
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter

Specifications

Range

UT512

Insulation resistance (Ω)

Test voltages

500V~2500V

0%~20%

500V

0.5MΩ~5GΩ

±(3%+5)

1000V

2MΩ~10GΩ

±(3%+5)

1500V

5MΩ~20GΩ

±(3%+5)

10MΩ~100GΩ

±(3%+5)

DC voltage (V)

600V

±(2%+5)

AC voltage (V)

600V

±(2%+5)

Short-circuit current

<1.8mA

Features

Auto range/Auto power off

Low battery indication

Data storage

18

Comparison measurement

Polarization index (PI)

Dielectric absorption ratio (DAR)

USB interface

Analog bar graph

30

LCD backlight

Over-range warning

High voltage indication

Timing measurement

Around 15 minutes

General Characterisitics

Power

1.5V battery (LR14) x 8

Display

123mm x 58mm

Product color

Red and grey

Product net weight

1.8kg

Product size

202mm x 155mm x 94mm

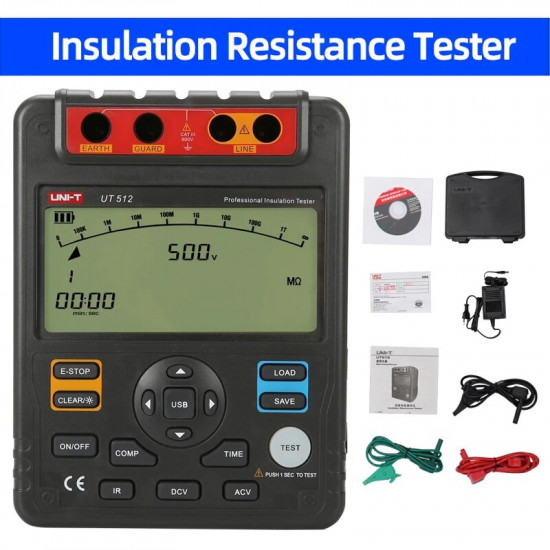

Standard accessories

2pcs of one plug test lead to one alligator clip (black and green), 1pcs of two plugs test lead to one alligator clip (red), batteries, USB  cable, PC software CD, power adaptor

Standard individual packing

Gift box, tool box, English manual

Standard quantity per carton

4pcs

Standard carton measurement

505mm x 345mm x 345mm

Standard carton gross weight

15.9kg

Write a review

Note: HTML is not translated!
Bad Good
UNI-T UT512 Resistance Tester Megger Insulation Meter Megometer Multimeter LCD Backlight AC DC Voltmeter
  • Stock: In Stock
  • Model: UNI-T UT512
  • Weight: 1.00kg
  • Dimensions: 202.00mm x 155.00mm x 94.00mm
190 samples sold
26,900.00DA
