1.Use with Much More Convenience with stop function on traditional switch:A really good substitution for one more new smart roller blinds switch to work with your traditional curtain switch to realize intelligence.Press your traditional curtain switch once after switch to up/down (on the same button)to manually stop your curtains easily.Also,it can be connected with your roller blinds shutter motor to smartly control your curtains.
Note before order:

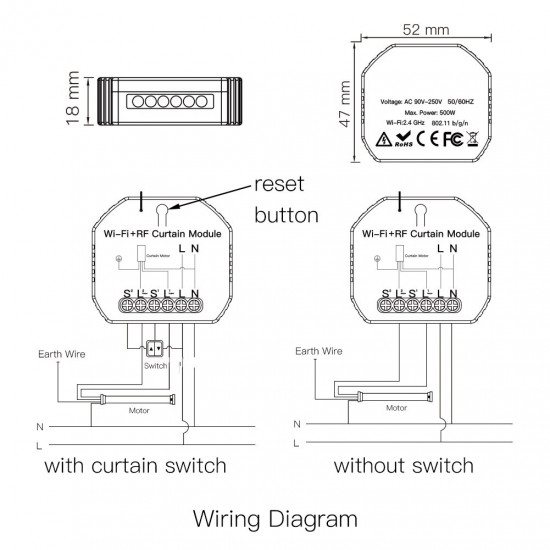

1.Please check your motor is with 4 wires before make your order.(Note:Motor not included,need a separate purchase.)
2.This roller blinds shutter switch module can not work with DC motor.
3.Please use this module with RF433 remote control switch(only encoding 1527 required.)
4.The remote control in this link is single channel!

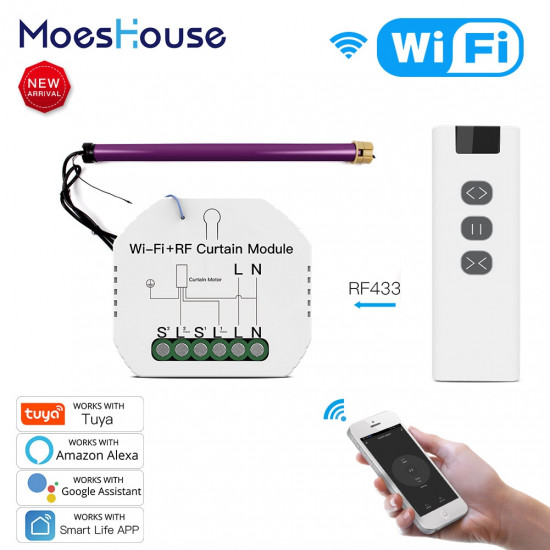

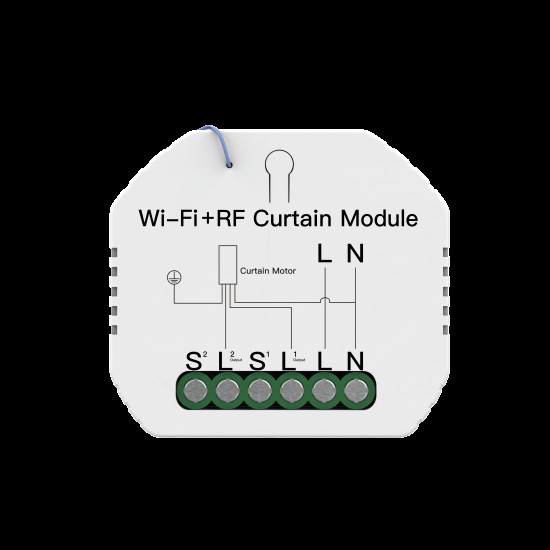

Product type: WiFi Curtain Module
Voltage: 90-250V AC 50/60Hz
WiFi frequency: 2.4GHz-2.4835GHz WiFi
RF frequency:433MHz,encoding 1527
Operation temp: -10℃-+40℃
Case temp: Tc +80℃(Max.)
Dims(W*D*H): 52*47*18mm(without clip)
IP rating: IP20
