access controller kit with fingerprint and facial recognition ROBISAN X10

The robisan X10 access controller kit with fingerprint and facial recognition and a set of products that allows you to control access to your doors via several modes:

• Facial
• Footprint
• RFID tags
• Facial +Finger (fingerprint).
• Tag + Finger
• Facial + Finger + Tag
• Remote

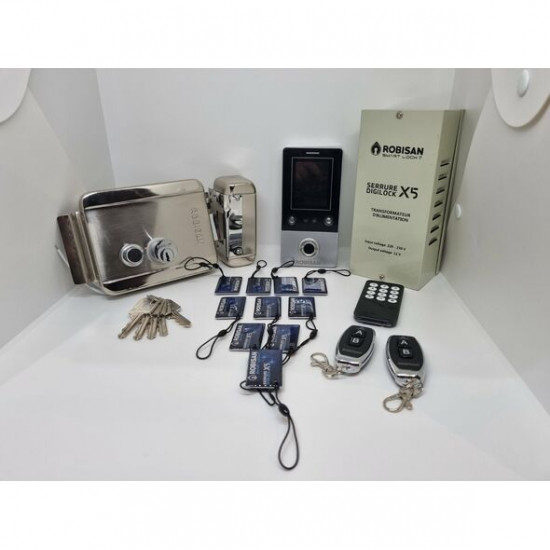

The kit is essentially composed of:

•  Power box
•  Card reader and fingerprint and facial recognition
•  Electric lock 458S
•  5 mechanical keys
•  10 IC-type TAGs
• 2 remote

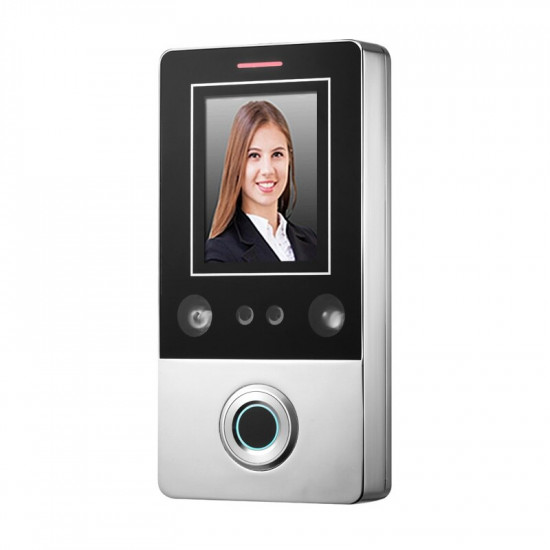

Card reader and fingerprint and facial recognition

The product is a new generation of multi-function face recognition standalone access controller and reader,

Which uses the powerful, stable and reliable new 32-bit ARM core microprocessor design.

It can be used as a weight reader or as a standalone access controller/reader.

And is suitable for access control applications in offices, private communities, villas, banks and pharmacies.

Features:

> Read 125KHz EM card (default)

> Keyboard feature: Infrared remote control operation.

> Output protocol: can work as a reader. The transmission format can be adjusted by users.

> Access mode: card, face recognition, fingerprint, card + fingerprint, card + face recognition

> Admin card: admin card, admin fingerprint (add/delete)

> User capacity: 10,000 card users, 1000 face users and 600 fingerprint users

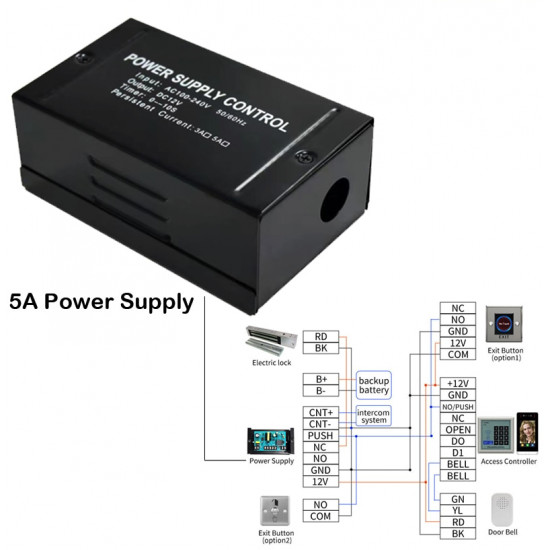

5A access control power supply

Description:

This is 100-240V access control power supply, it is made of high quality electronic components and advanced international technology, it has anti-interference ability, provides very stable and reliable output in various applications such as lock control/controller control/exit button/RFID-IC reader. Etc.

Key functions:

It directly controls the electric lock.

Can reduce access controller load, save wiring to reduce hidden trouble

Set NC/NO outputs, can control different kinds of electric locks

Delay control circuit based, latch time can be 0-15 seconds

Automatic protection function, unexpected situations such as

In the event of a power supply short circuit, the power supply may be

Temporarily disconnected or the car insurance line fuse deactivated

Operation device: E/M lock, access controller, exit push button

Main specifications:

AC Input: Standard 100-240V

DC output: Stabilivolt DC12V/ 5A
