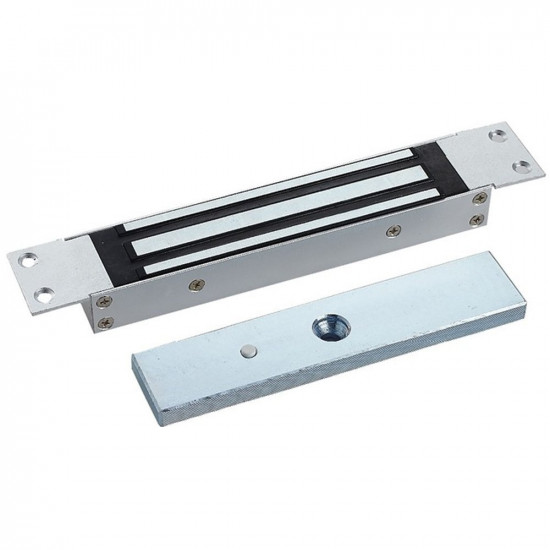

Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access

Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Hot
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access
Flush mount 180kg 12V Built-in concealed Electric Magnetic Electromagnetic Lock for door gate access

Material :steel alloy. Installation type: Flush Mount
NC mode - (locked while supplied with power), fail safe mode
Safety function : Built-in voltage spike suppressor
Installation type: Concel mounted
Holding force about 180kg (350lbs)
Specifications:
Holding force:350lbs/180kgs
Voltage: DC 12V
Current:380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity:0 to 95%
Working mode: power-on to lock
Lock size:0.63 * 1.09 * 0.07in
Lock weight:17.6oz
Plate size:5.1 x 1.3 x 0.4in
Plate weight:11.6oz
Package size:8 x 2.2 x 2.2in
Package weight:2.1lb
Application:
These products are widely applied in access control system and related applications.

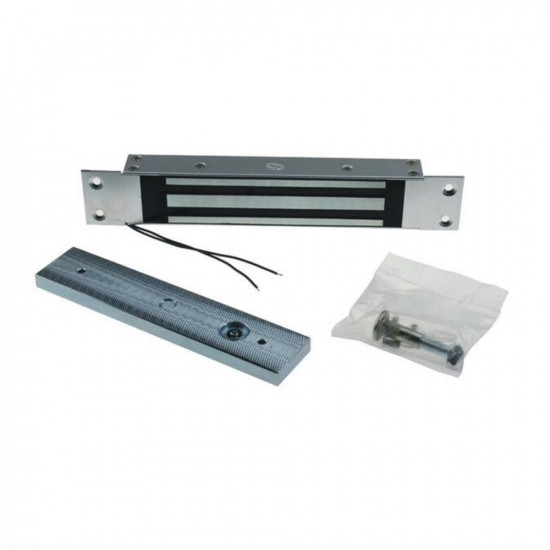

Package Include:
1x Electronic magnetic lock 350lbs 180kg
1x Armature faceplate

Common installation methods

Conventional installation method

This installation method is suitable for installation when the distance between the edge of the door and the edge of the door frame when the movable door is closed is greater than the thickness of the magnetic lock

     L bracket installation method

This installation method is suitable for installation when the distance between the edge of the door and the edge of the door frame when the movable door is closed is less than the thickness of the magnetic lock.

      ZL bracket installation method

This installation method is suitable for parallel installation of door frame and movable door

Glass door U bracket installation method

This installation method is suitable for the installation of glass doors without borders
