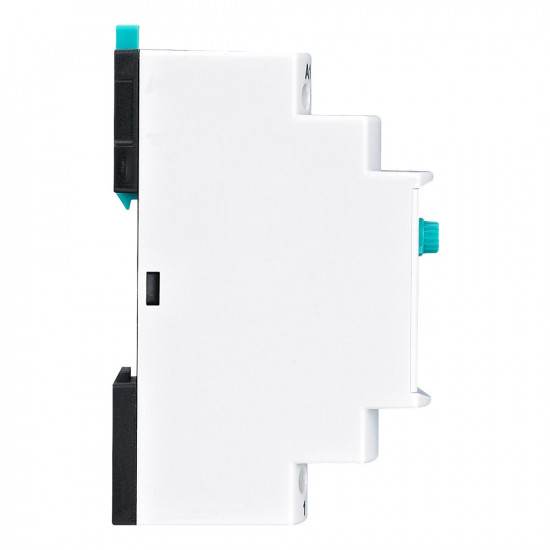

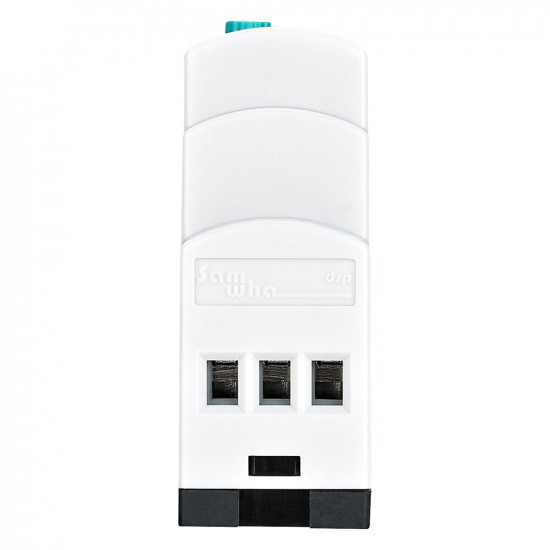

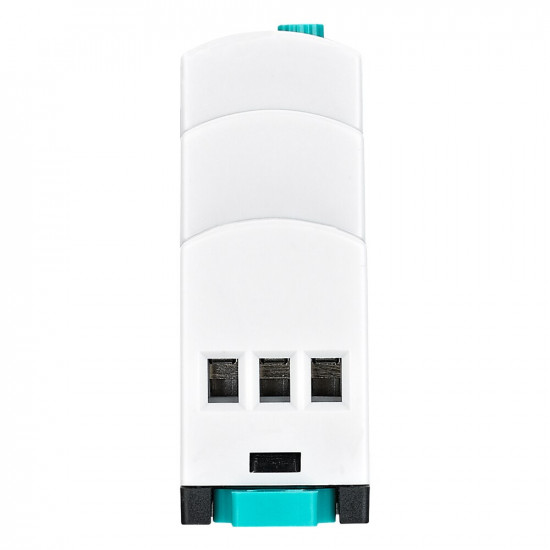

DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)

DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
New
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)
DRV-08 Digital Multifunction Timer Relay (0.1sec -100 hours)

General

DRV-08 digital timer is designed to be use wherever time dependent control is required.

Usage and Working Principle

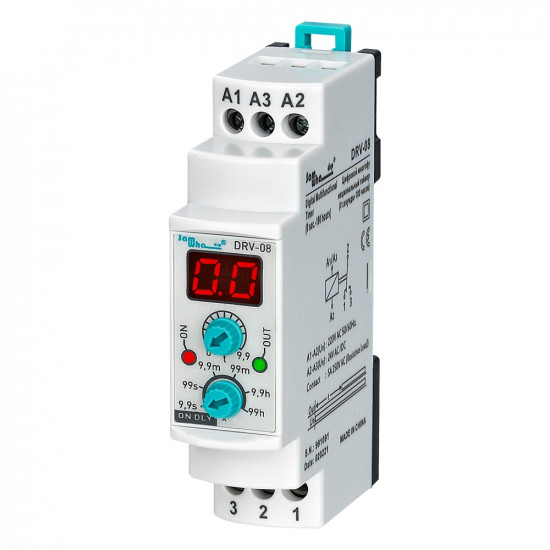

Display:
Displayed here while setting the time and counting down the set time. If the operating time is set in minutes, the rightmost point of the display flashes while the device is counting the time.

t Knob:
To set the working time value, move the knob to the desired value. When setting the time, the set time is displayed on the screen. (If the time is changed while the device is counting time, the device continues to count the new time set.)

x Knob:
To set the time range, move the“x" knob to the desired value.The right side is reserved x Knob: To set the time range move the“x" knob to the desired value.9.9 sec., 99 sec., 9.9 min., 99 min., 9.9 hors., 99 hours 6 different time periods can be set. When the time range is set while the device is powered, the device must be de-energized and re-energized in order for the adjusted time range to be valid.

Maintenance

Switch off the device and release from connections. Clean the trunk of device with a swab. Don’t use any conductor or chemical
might damage the device. Make sure device works after cleaning

Warnings

Please use the device according to the manual.
Don’t use the device in wet.
Include a switch and circuit breaker in the assembly.
Put the switch and circuit breaker nearby the device, operator can reach easily.
Mark the switch and circuit breaker as releasing connection for device.

Specifications

Operating Voltage(Un)....: 220V Or 110VAC /24VDC
Operating Frequency.......: 50/60 Hz.
Operating Power...............: <6VA
Operating Temperature..: -20°C.....+55°C
Time(t).................................: 0.0sec, - 99hour
Display:.................: 1x2 LED Display,2x LEDs.
Connection Type..............: Terminal connection
Weight................................: Max.220gr.
Contact....................:5A/250V AC (Resistive Load)
Mounting.................: Assembled on the din rail
Operating Altitude..........: <2000meter
Cable Diameter.................: 2,5mm²

Construction

Working Mechanism

Dimensions

Connection diagram
