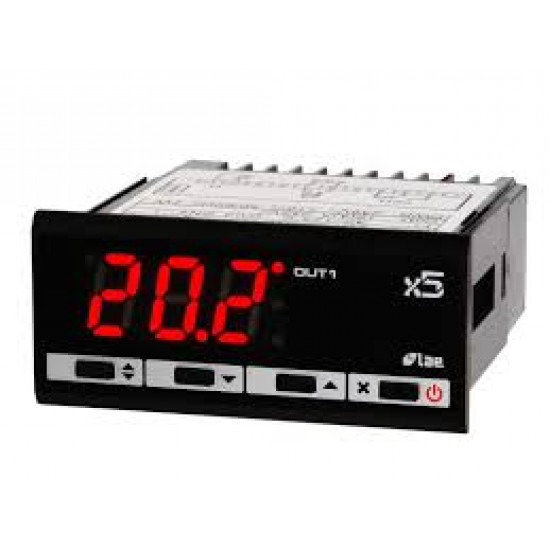

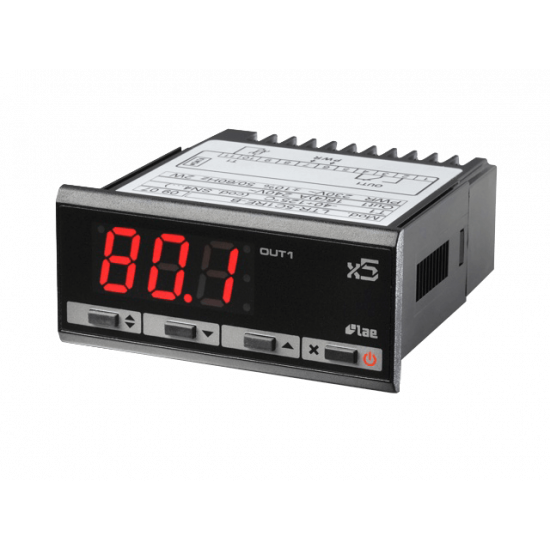

Electronic thermostat 1 relay LAE LTR-5CSRE 230V (X5)

Technical informations

IP55

Recessed cutout: 29 x 71 mm

Fixing by 2 clamping brackets

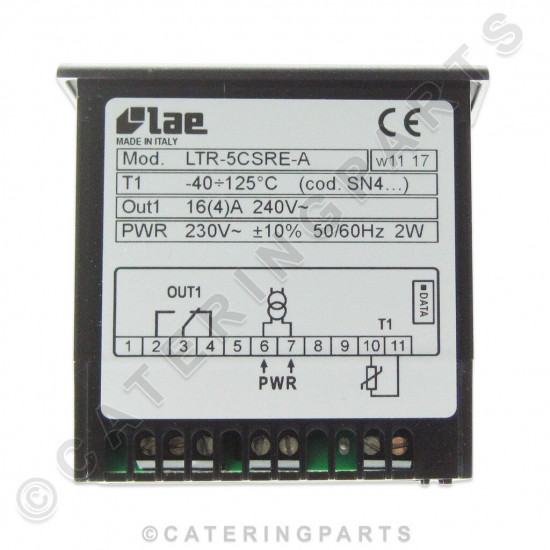

Connection via screw terminal block

Type 030354

Measuring range -40 to +125 ° C

Max measured temperature +125 ° C

Min temperature measured -40 ° C

Outputs (temperature regulator) 16 A relay

Number of relay outputs 1

Outputs 1 relay 250 V / AC - 16 (4) A

Dim. (L x W x H) 77 x 77 x 35 mm

Height 35 mm

Length 77 mm

The LTR-5 series temperature controller is an integrable device, extremely reliable and very easy to use. Its output with 1 relay 250 V / AC - 16 (4) A allows it to be used in association with stationary heating or cooling equipment. Ideal for air conditioning of premises, cold rooms.

Strong points

Sensor type: NTC10K probe (2 m)

Measuring range: -40 to +125 ° C

Output: 1 relay 250 V / AC - 16 (4) A

Cutout for installation: 29 x 71 mm

Features

Control of small cold rooms, refrigerated cabinets and tables. Heating installations, heated cabinets, thermostatic baths, ovens and laboratory equipment.

Scope of delivery

Temperature regulator

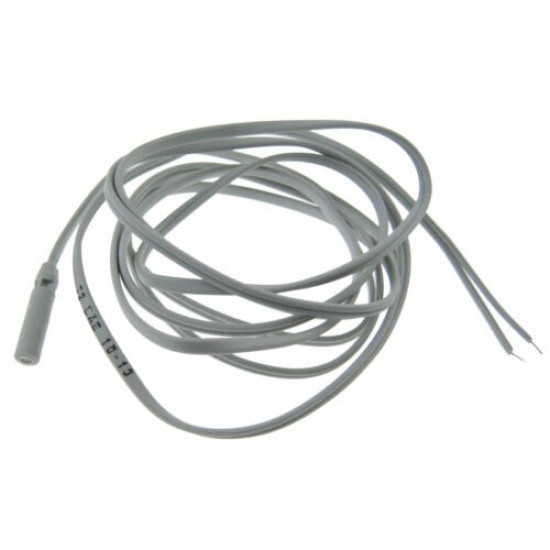

NTC10K probe + 2 m cable.
