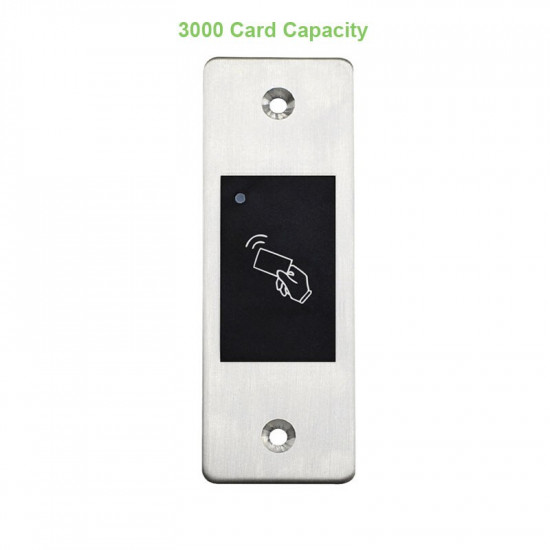

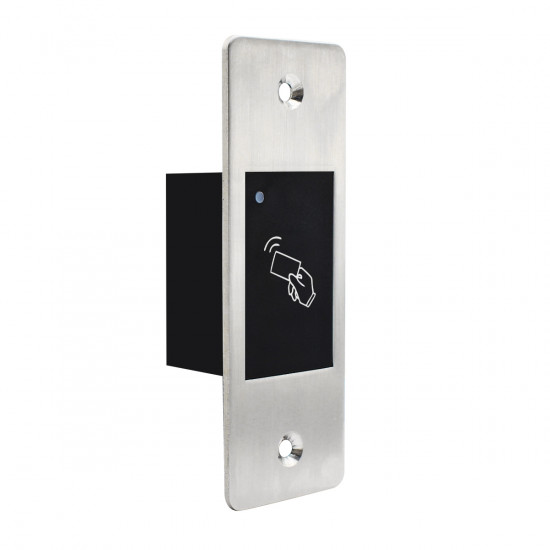

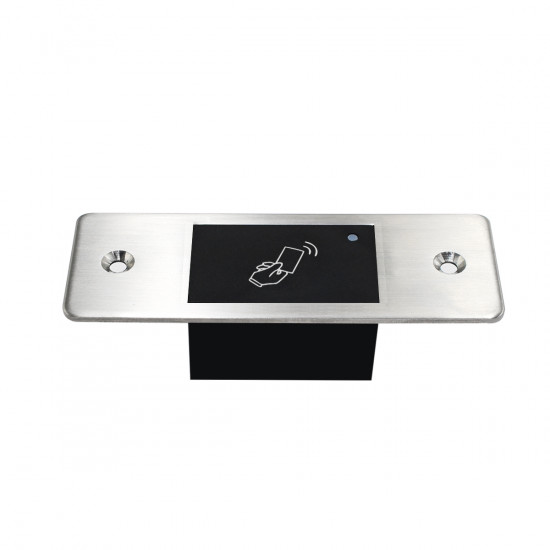

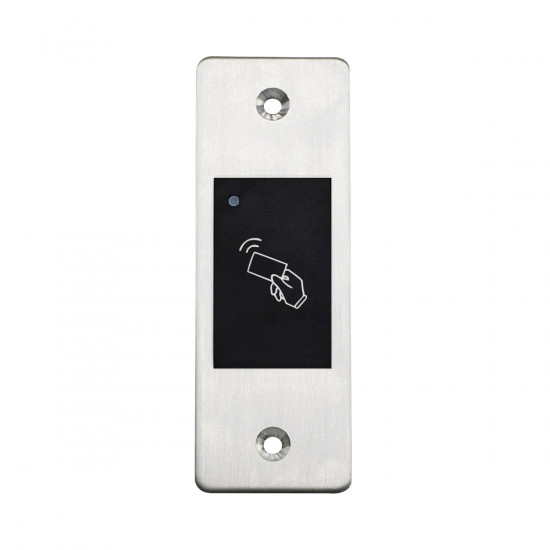

S99 this is Mini Metal Case Standalone RFID Access Control with Embedded Design.

Support 125KHz EM Cards.

It is an ideal choice to install on door frame.

IP66 Waterproof is very sitable for outdoor use.

It support Master card for easy opeation.


Feature:

> Embedded Design with Mini size

> Metal case and IP66 Waterproof

> User capacity:support 3000 Cards

> One programmable relay operation

> Latch mode to hold door and gate open

> Tri-colour LED status display



User Capacity

3000 Cards

Operating Voltage

DC9~24V

Idle Current

≤25mA

Active Current

≤100

Proximity Card Reader

EM

Radio Technology

125KHz Proximity Card

Read Range

50px

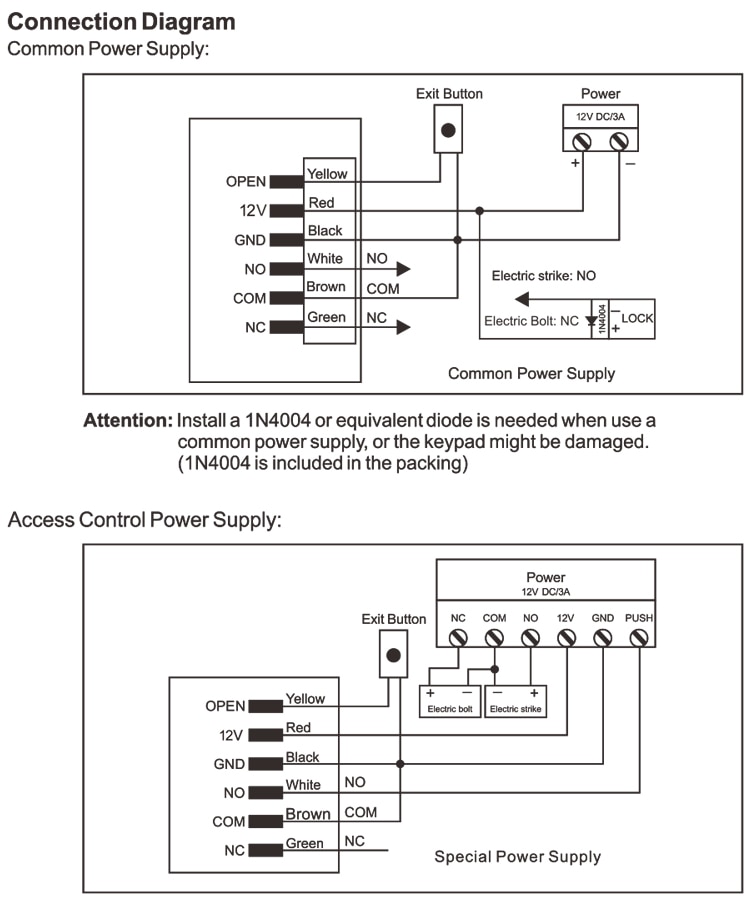

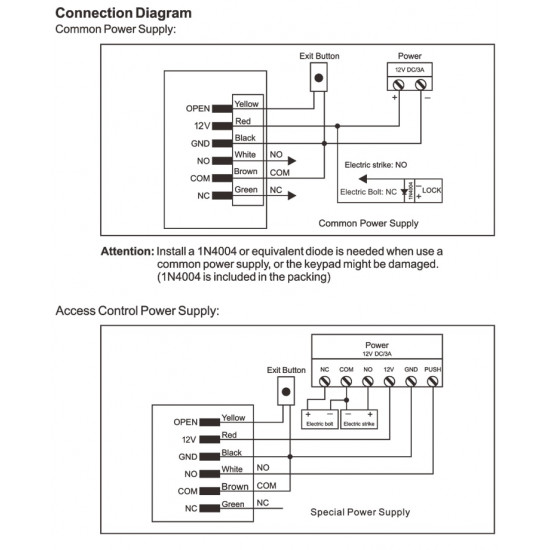

Wiring Connections

Relay Output, Exit Button

Relay

One (NO, NC, Common)

Adjustable Relay Output Time

o-99 seconds (5 seconds default)

Lock Output Load

2 Amp Maximum

Environment

Meets lP66

Operating Temperature

-25℃~60℃ (-13°F ~140°F)

Operating Humidity

20%RH-98%RH

Physical

Zinc-alloy plate

Colour

Silver

Dimensionsion

L115xW40xH30mm



Write a review

Note: HTML is not translated!
Bad Good
Wall-mounted Embedded 125KHz EM Card Access Control for Elevator RFID System
  • Stock: In Stock
  • Model: S99
  • Dimensions: 115.00mm x 40.00mm x 30.00mm
192 samples sold
8,500.00DA
