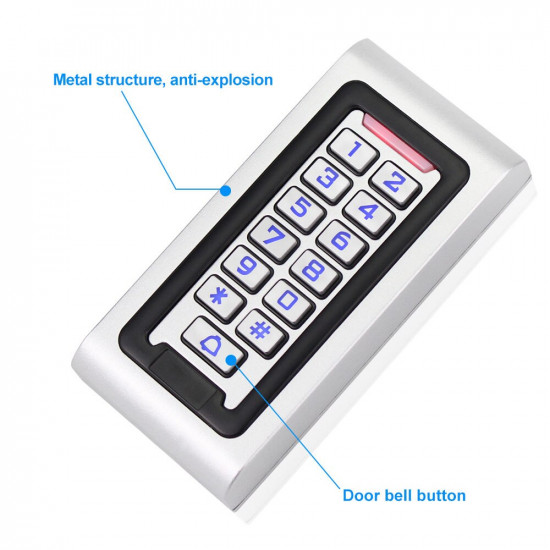

IP68 Waterproof standalone Access Control System Rfid Access Controller keypad S601EM

IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM
IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM
IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM
2-3 Days
IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM
IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM
IP68 Waterproof  standalone Access Control System Rfid Access Controller keypad S601EM

Card type

EM

Waterproof degree

IP68

User capacity

2000 card user card, 2000 user password

Environment Humidity

10%~90%

Lock output

≤3A

Working voltage

DC12V±10%

Static electricity

≤30mA

Alarm output

≤20A

Output short circuit protection time

≤100μS

Card read distance

5~8cm

Ambient temperature

-45℃~60℃

Door Opening Time

0~99s(Adjustable)

Dimension

120*56*18mm



Perfect disign, with backlight and fashion silver finish.



Strong standalone function device, can be used as WG26 reader alone.

Capacity: 2000 user's cards, 2000 codes.

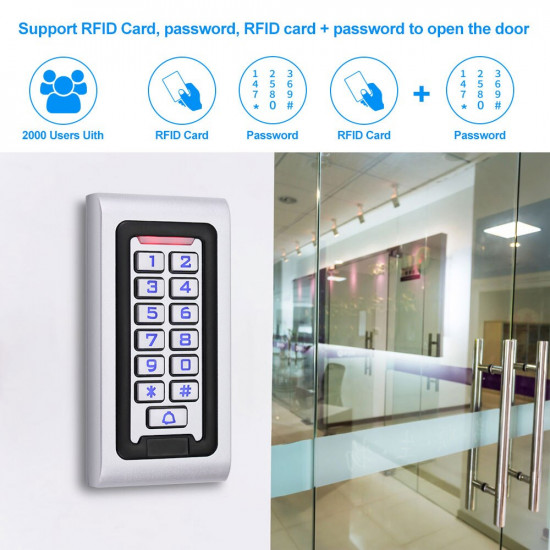

Access ways: cards, code, card+code.

Low power: static current less than 30mA

Support only keypad.

Users can reset private passwords.

Search fast less than 0.1S.

Wiegand output W26 for card and w4 for codes.

Use keypad to delete lost cards for safety.

Short-circuit protect: when relay or alarm output short circuit, it will shut up output in 100μS.



s601 size
